Vol.8 VARIOUS KINDS OF SPECIAL SHAPE
For punching with a turret punch press, various types of special shape tooling are used.
JOINT TOOLING

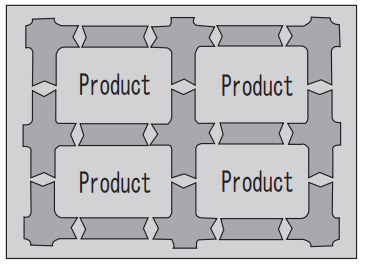

When processing a large number of products with one piece of material (sheet),
a joint type is used to hold the products together.
There are two types of joints: MICRO JOINT and WIRE JOINT.
MICRO JOINT
Fix the product to the base material with a small joint and give vibration to the workpiece after processing.

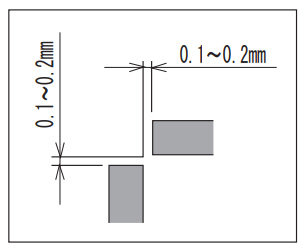

1.Joint of corner part
The outer periphery is removed at square or rectangle,
and a part is connected without cutting off the corner as shown in the right figure.
Detail of Joint
Cases of micro joint processing
(Joint of corner part)

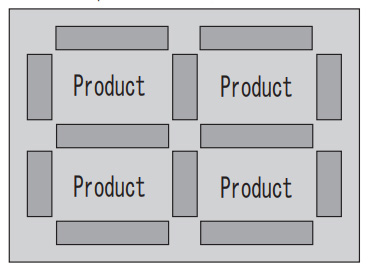

2.Joint of straight part
Cases of micro joint processing
(Joint of corner part)
It is recommended to actually process and check with reference to the above dimensions.
WIRE JOINT

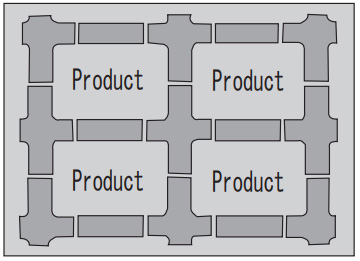

Use a wire joint larger than a micro joint to hold large products together.
Detail of Joint
Cases of micro joint processing
(Joint of corner part)
CORNER RADIUS
Use the corner radius type (CR type) to Round the corners of the product.
Typical corner radius types are as follows.

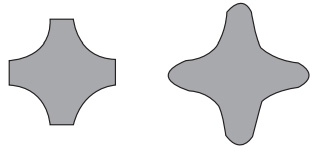

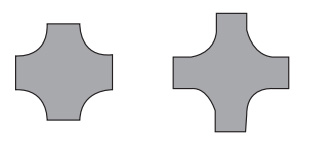

Standard Corner radius tool | Corner radius tool with tangent line | Corner radius with joint |
|
|
|
NIBBRING RADIUS TOOLING
There are the following methods for removing holes larger than the size of the punching.

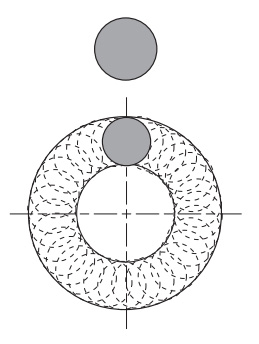

- 1.Slitting processing by Round Nibbling Method

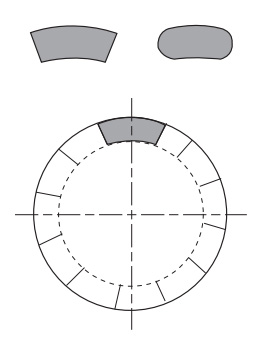

- 2.Slitting processing by Curved tool punching Method

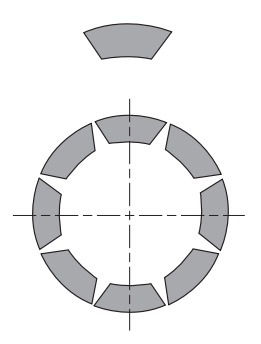

Round Nibbling Method | Curved tool punching Method | Radius tooling with Joint |
|
|
|
The punched surface becomes wavy. | The central part pulls out with a round or square shape, and the outer peripherynibble with a rounded shape. | Provide a joint and remove the joint after processing. |
