This time, we summarized the general bending process.

VARIOUS KINDS OF BENDING PROCESSES

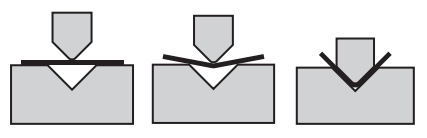

V bend
V bend

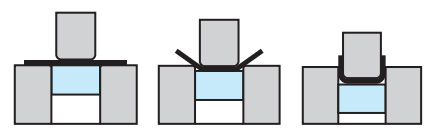

U bend
U bend
L bend
L bend

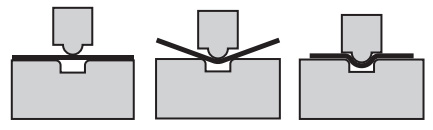

Beading (Rib)
Beading (Rib)

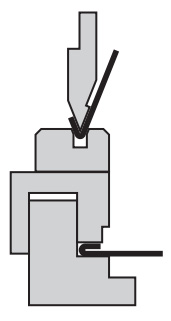

Hemming
Hemming
Many more kinds of bending process are used for sheetmetal besides the above way of processing !!

DIMENSIONS OF STANDARD V-BENDING

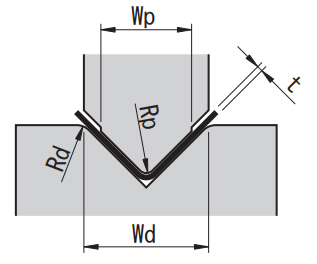

DIMENSIONS OF STANDARD V-BENDING Wp=8xt Wd=(6-8)xt Rd=(2-4)xt
Material Standards Rp
Steel SPCE
S45C,S50C		 (0 - 0.2) x t
(0.5 - 1) x t
Stainless steel SUS304
SUS410		 (0.5 - 1) x t
(0.7 - 1.5) x t
Aluminum A1100
A2024		 (0 - 0.2) x t
(0 - 1) x t
Copper Cu (0 - 0.2) x t

CALCULATION METHOD OF THE EXTEND DIMENSION

Use the following formula to calculate the extend dimensions of the bend.

L = X + Y - 1.5 x t

L = X + Y - 1.5 x t

L = X + Y - 2 x t

L = X + Y - 2 x t

L = X + Y - 5.5 x t

L = X + Y - 5.5 x t

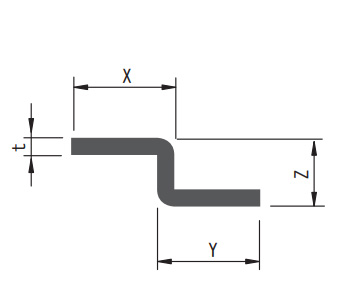

L = X + Y + Z - 3 x t

L = X + Y + Z - 3 x t

PRODUCT INTRODUCTION：Z bend tool [ DANSAR ]

“DANSAR” can be bent at various steps by changing the thickness of the shim inserted between the body and the blade.
By changing the thickness of the step adjustment shim, it is an epoch-making step bending tool that can be easily set and the concept and ease of setup exceed conventional wisdom.

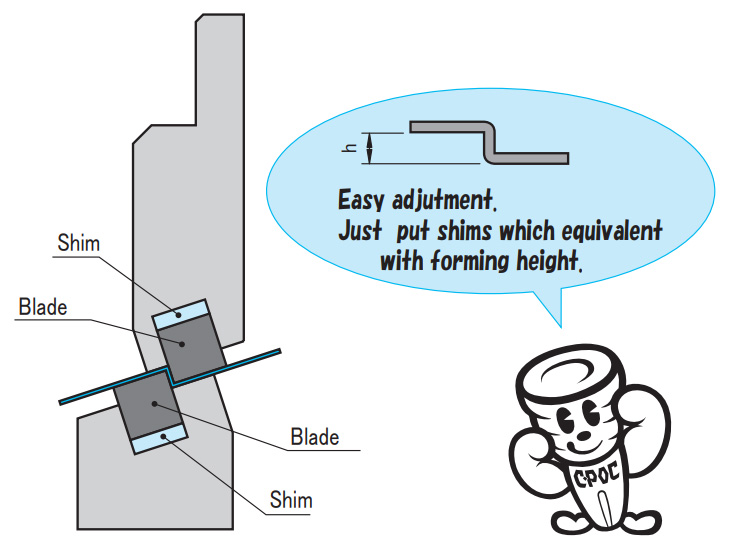

Easy adjutment.Just put shims which equivalent with forming height.

Easy to make proper clearance
by a spacer.

Easy to make proper clearance by a pingaging.
  • ●Various combinations are available, such as one-piece and sectional type.
  • ●There is also "DANSAR-SUS" with a high-hardness blade set for stainless steel step bending.

Please contact us for more information.
