Vol.16 Cara menggambar dan membaca gambar (Penggunaan praktis)
This time, the points to note when actually drawing and points to draw easy-to-read drawings are summarized.

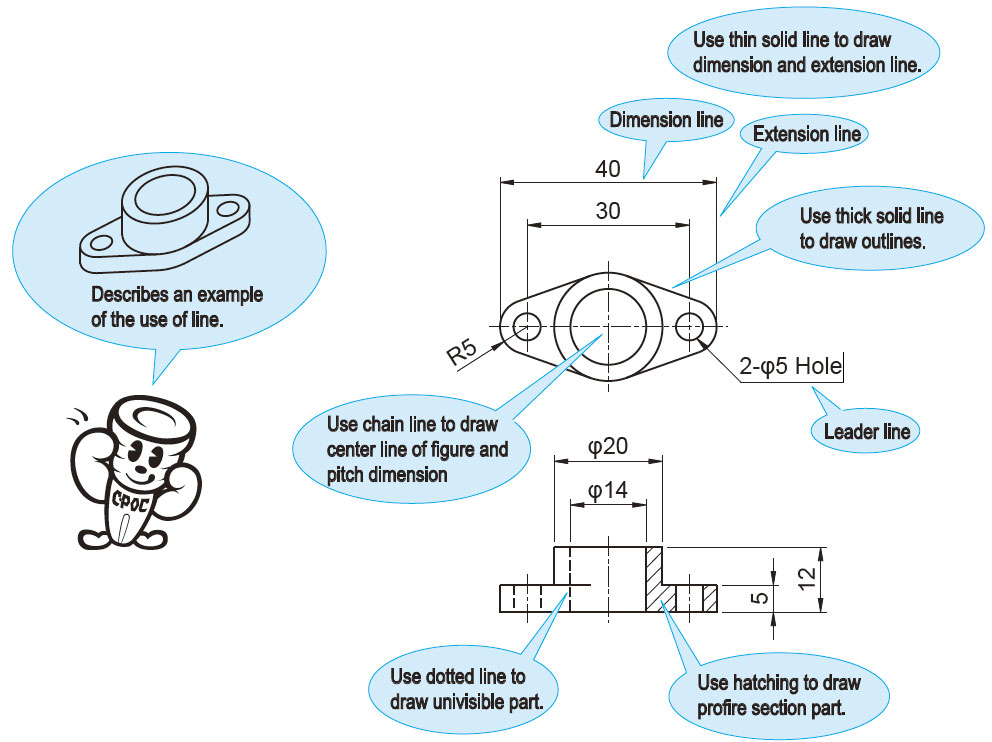

EXAMPLES OF USING EACH LINE
- ◆The example of using the line explained
last time is actually drawn and explained.

NOTE

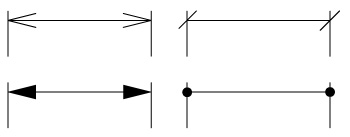

The symbols (terminal symbols) at both ends of the dimension line used for dimension entry are as follows.
Terminal symbols should be the same except in the lower right drawing.

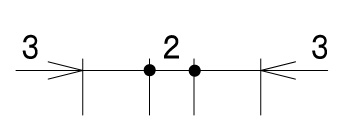

If no room for arrow head,
use black circle or slash.

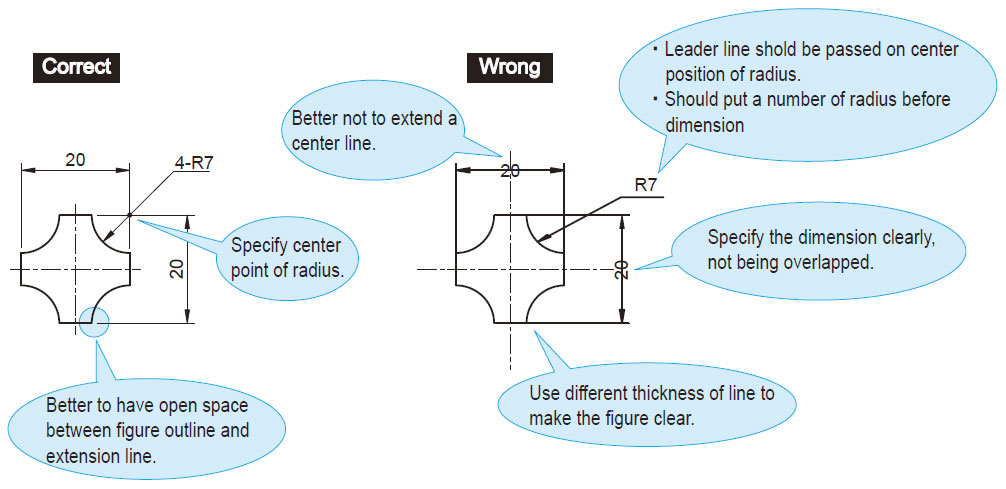

DRAW SPECIAL SHAPES
Draws an irregular shape drawing that is often used in sheet metal processing and summarizes the points of drawing.

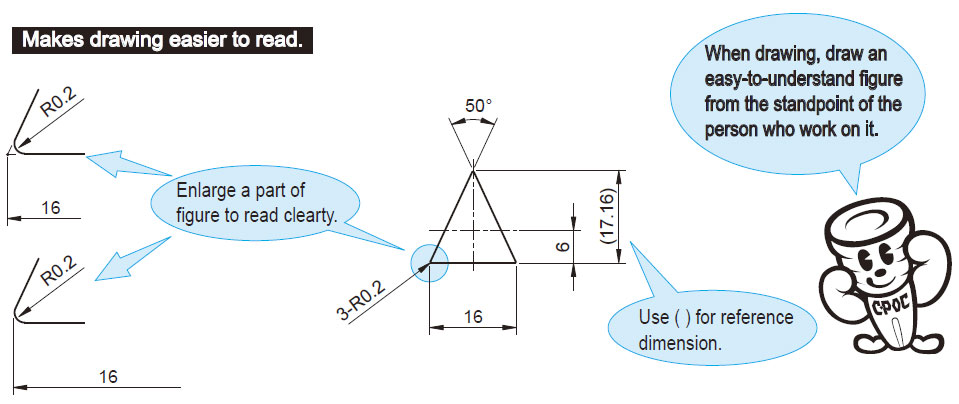

Summary – To draw easy-to-read drawings
- 1.Draw a clear drawing by clearly distinguishing outlines and dimension lines.
- 2.Clarify necessary contents and do not draw unnecessary contents.
- 3.Make a simple drawing prevent from complication.
- 4.When you have finished drawing, review the drawing as a person working on it.
