23) PROJECTION
OUTLINE OF FORMING

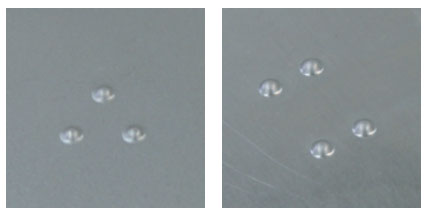

This is a process for forming a plurality of spherical projections.
Used for projection welding.
- ※Projection welding is a method of providing projections of the metal member to the joint, the weld current to concentrate on that part.
NOTE

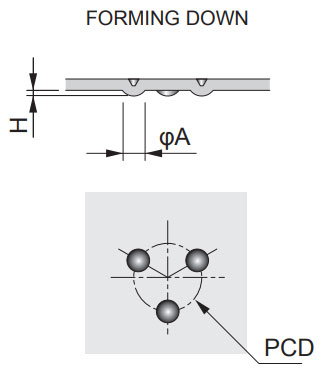

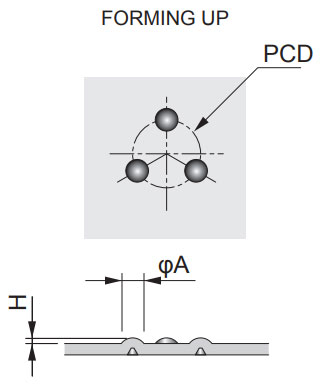

- 1）Please indicate the convex diameter (A), the number of convex part and PCD.
- 2）The number and arrangement of the convex can be specified arbitrarily.
