13) BRIDGE, DOUBLE BRIDGE
OUTLINE OF FORMING

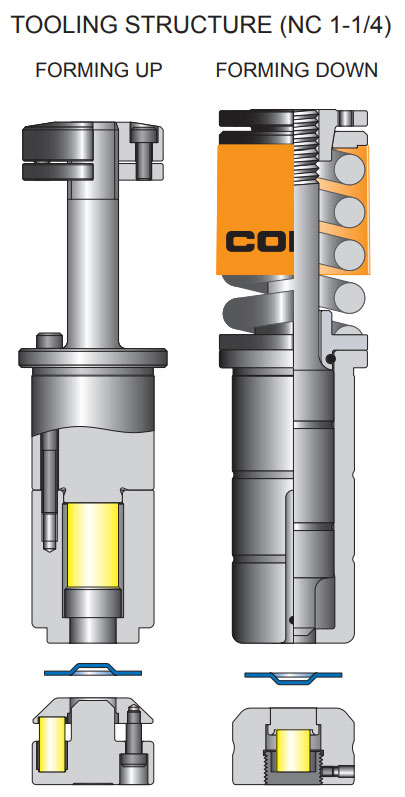

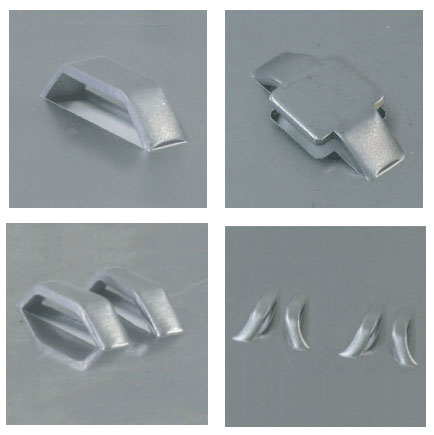

Forming process of lance like a bridge.
Used for sinking a head of bolts or nuts.
Used for the seat of product.
Used for the guide of printed-circuit board.
NOTE
-

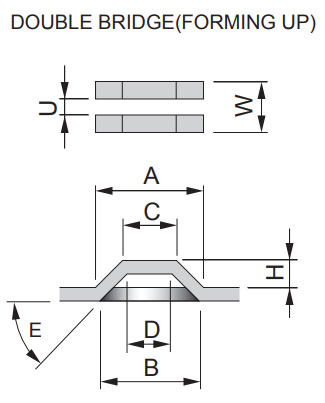

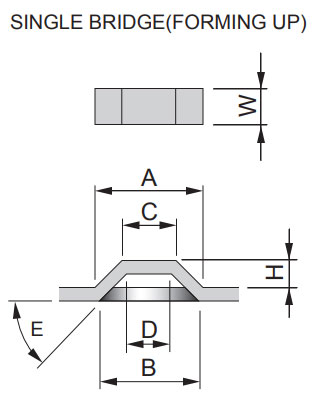

1）Please indicate the dimension "A or B" and "C or D" when you order.
You can also indicate the dimension "A,B,C or D" and angle(E). - 2）Please indicate if need a flat area on C or D.
-
3）

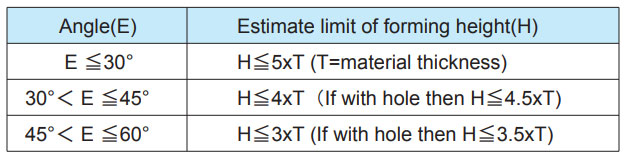

The forming limit height(H) is as follows.
-
※ The limit of forming height is depend on the material and thickness and shape.
For more information, please contact us.
-
※ The limit of forming height is depend on the material and thickness and shape.
