24) HINGE TOOL
OUTLINE OF FORMING

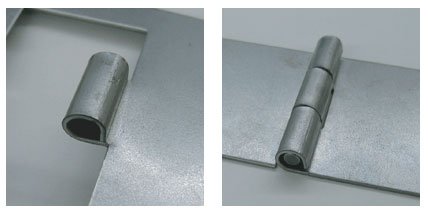

Forming process to make hinge knuckle.
Hinge is made of two pieces.
Each piece include one or more interlocking knuckles to create a hinge.
Used for a jointed device on which a door, gate, shutter,or other attached part turns, swings, or moves.
NOTE
- 1）Three processes are required to produce hinge.

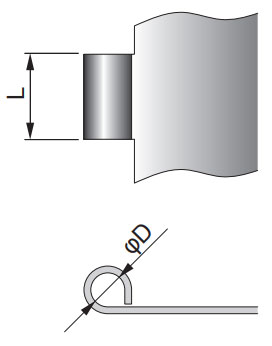

- 2）φD≦φ5
L≦ 15 mm
If you require another dimension, please contact us.
