5) COUNTERSINK BURRING

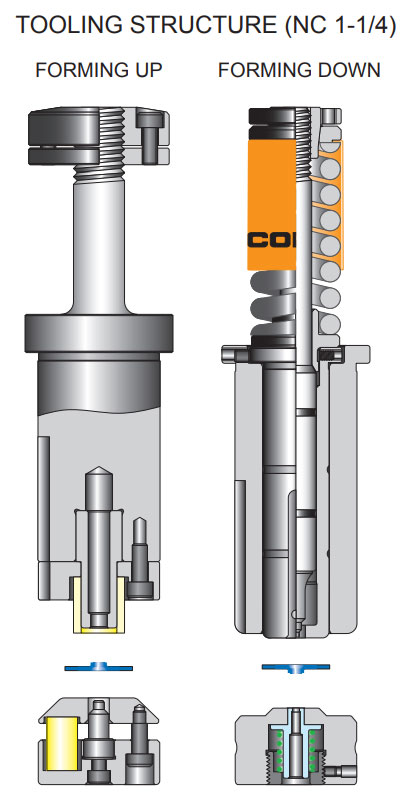

OUTLINE OF FORMING
Forming process for making tube of threading for screw, and at the same time make a chamfer in the entrance part.
Used for threading for screw. Used to guide at the time of tapping.
NOTE
- 1）Please indicate the dimension of A, B and angle(C),
when you order. -

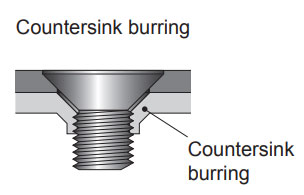

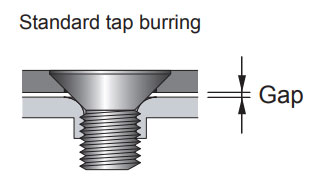

2） If the gap appear between chamfered plate and burring plates,
when joined by a countersunk screw, please use the countersink burring.
PDF Download
-
