22) MARKING (EMBOSS)

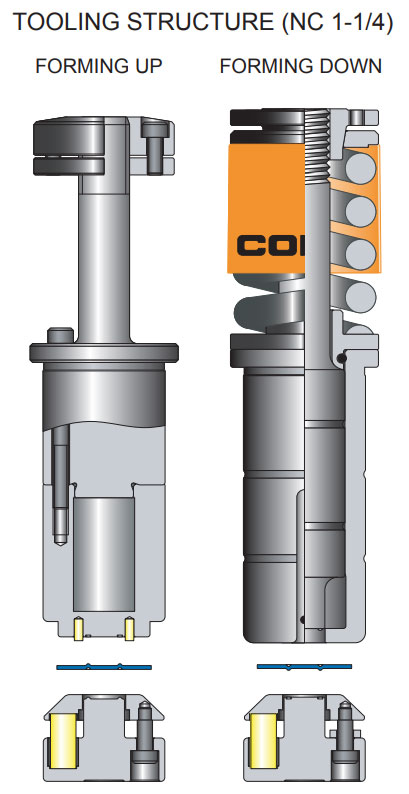

OUTLINE OF FORMING

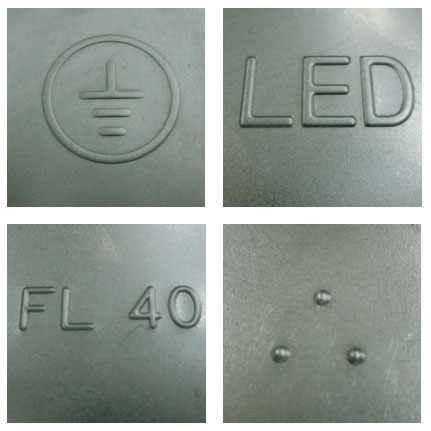

Forming process of embossing the character or logo etc.
NOTE
- 1）Please indicate the size of character when you order.
- 2）Minimum line width is 1 mm.
-
3） The minimum character size that can be formed is as follows.
(Height of character)Number Chinese characters 3mm 10mm - 4）Please indicate that either read from the convex side or the concave side.
PDF Download
-
