14) LANCE (Z-BENDING)
OUTLINE OF FORMING

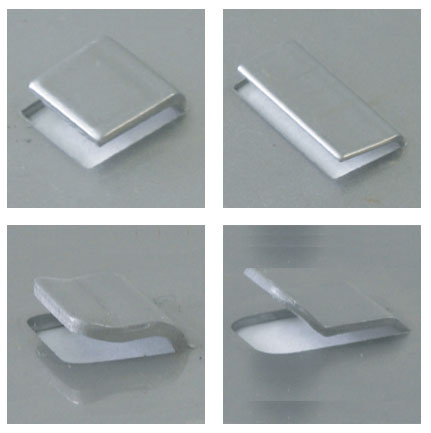

Forming process of lance like Z-shape.
Used for hook, positioning and stopper.
NOTE
- 1）Please indicate the each dimension when you order.

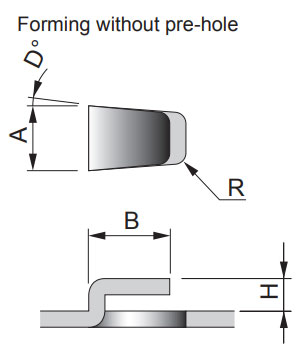

- 2）In case of forming without pre-hole, it is necessary to put the angle(D) to prevent mistakes strips.
The angle(D) must be more than 2°.

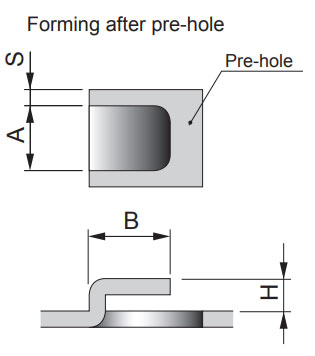

(Recommended angle is more than 5°) - 3）Tool life is improved by making the pre-hole.

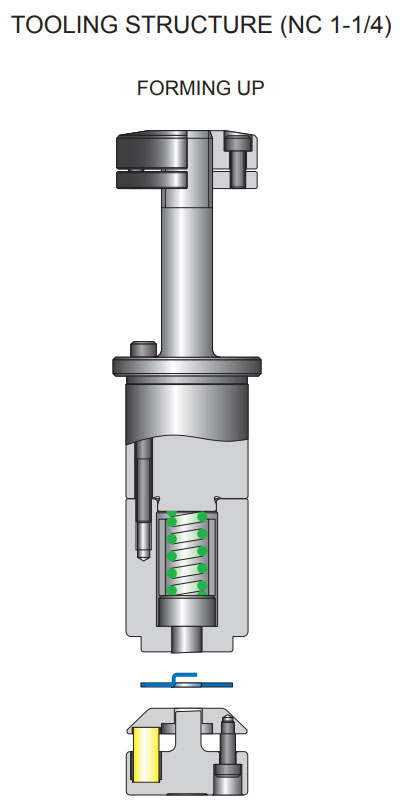

- 4）Forming direction is upward.
In case of forming down, the moving trouble will occurs.
