7) BURRING FOR THREAD FORM
OUTLINE OF FORMING

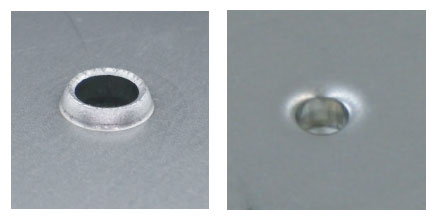

Forming process for making tubes of threading for screw.
Threading for screws and increased bearing area for tubes.
NOTE
- 1)Height(H) is almost same as material thickness.

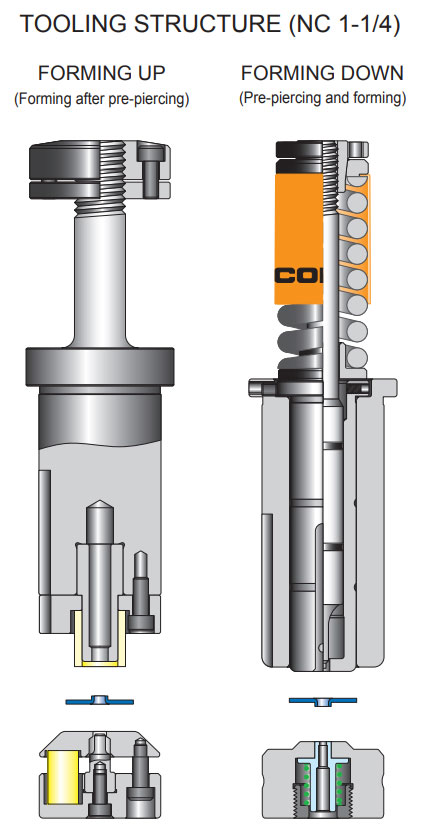

- 2)There are two types of tooling.
- ・One is forming together with pre-piercing at the same time.
- ・And the other is forming after pre-piercing.
- 3)
Please indicate the screw size or diameter (A),
when you order.

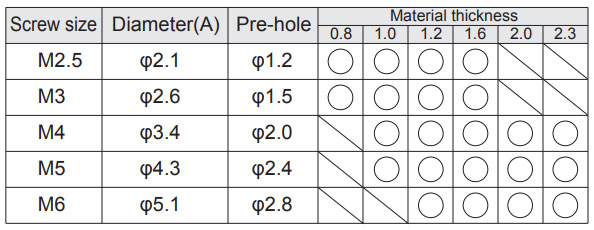

Our standard size is shown in the table below. - 4)Upward pin of the standard dimensions has "TiN coating process" for better durability.
