2) EMBOSS (DIMPLE)

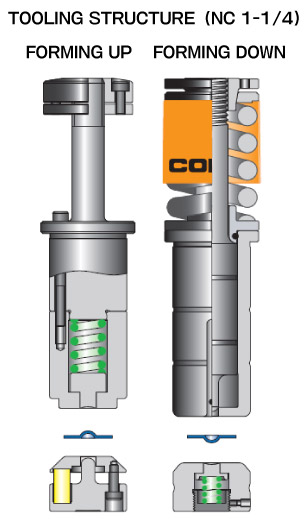

OUTLINE OF FORMING

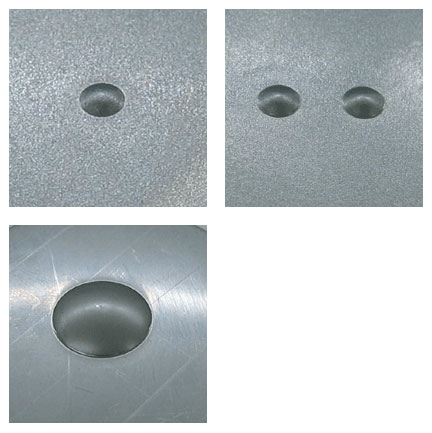

Forming process of embossed material such as dimples.
Used for positioning or decorative pattern of the material.
NOTE
- 1）The height(H) is preferably less than 40% of the diameter(A).
- 2）The height(H) is preferably less than three times of the material thickness.
- 3）It would be D ≧ H.
- 4）Please indicate the dimension of either A, B, C, D,
when you order.
