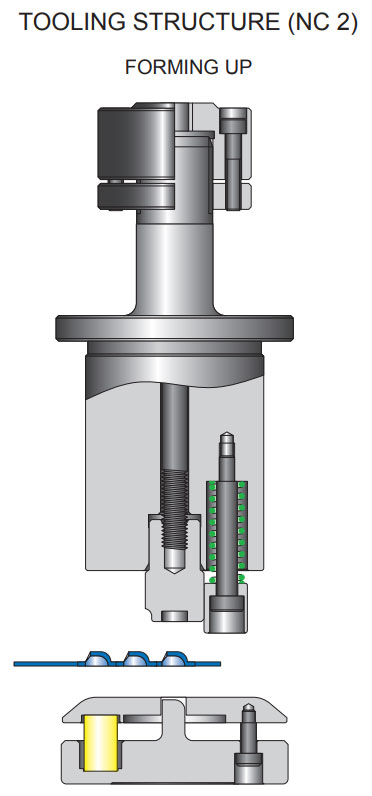

17) LOUVER FOR AIR FLOW
OUTLINE OF FORMING

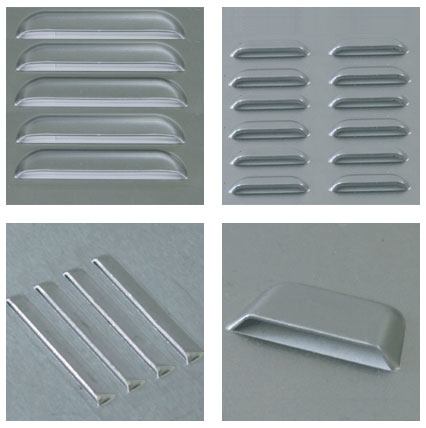

Forming process of lance to create an opening.
Used to provide air flow or ventilation.
NOTE
- 1）

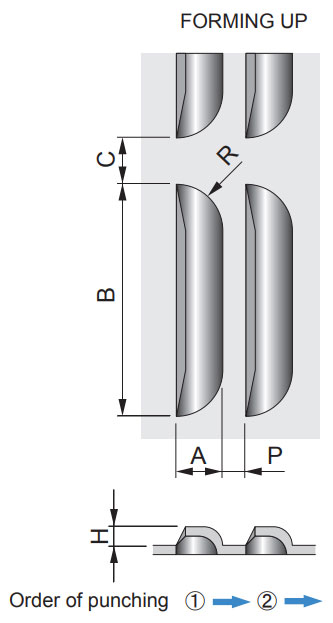

Conditions of punching
Material thickness ≦ 2.3 mm
Width(A) ≧ Height(H) x 2
Height(H) ≦ Material thickness x 4 (Mild steel)Forming pitch P ≧ 5
C ≧ 5 (Material thickness ≦ 1.6 mm
C ≧ 8 (Material thickness ＞ 1.6 mm)
Height(H) ≦ Material thickness x 3.5 (Stainless steel, Aluminum)- ※If the punching conditions are not met, please contact us.
- 2）Upper tool is the punch tip type except for some models.
- 3）Except for some models, the upper tool is a replaceable blade type.
