6) ONE PITCH THREAD FORM
OUTLINE OF FORMING

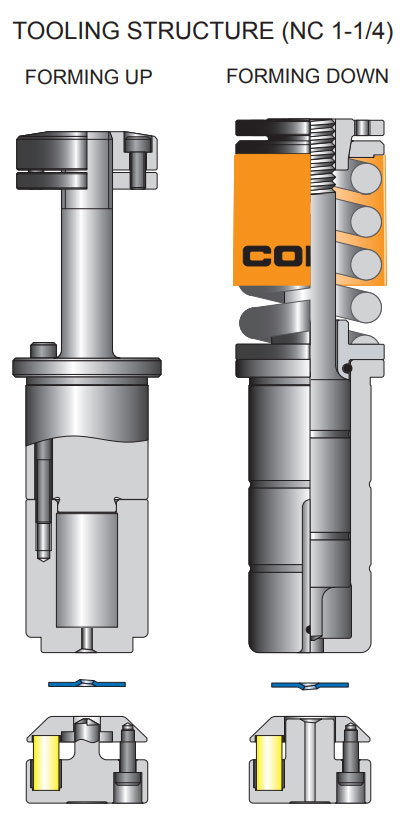

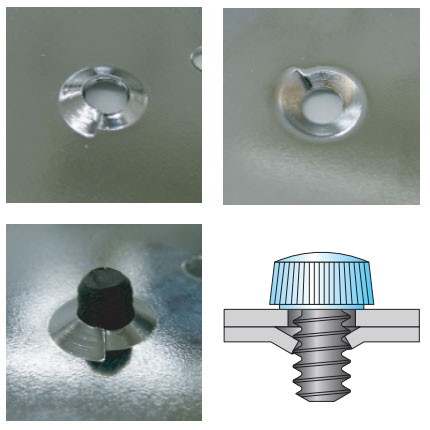

Forming process of making the one pitch thread form.
Used to screw in place that does not require a heavy strength.
NOTE
- 1）Please indicate the size of screw when you order.
- 2）

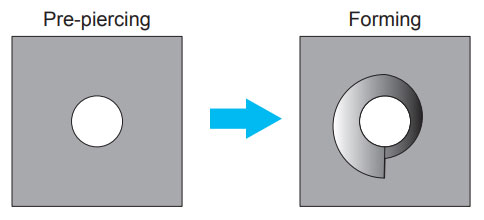

Forming after pre-pierced.
- 3）Although the material thickness can be different, you can use in the same tool, if the same thread size.
But it is necessary to adjust the height of the punch. - 4）
Applicable material thickness are as follows.
Screw size Applicable material thickness M3 0.6t～0.8t M4 0.6t～1.2t M5 0.6t～2.0t M6 0.6t～2.0t M8 0.6t～2.3t
