11) CENTER POINT

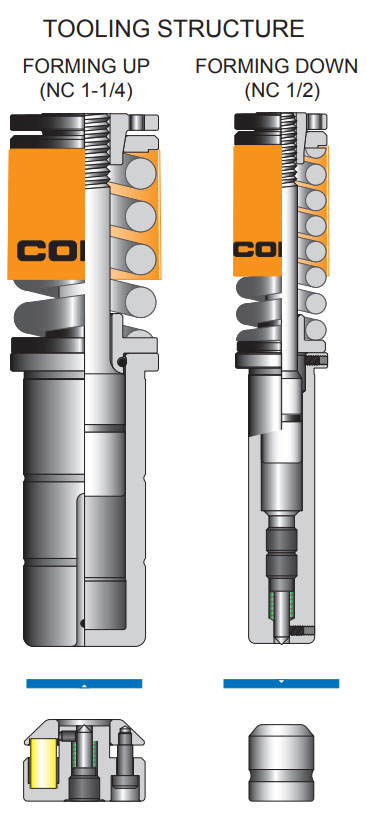

OUTLINE OF FORMING

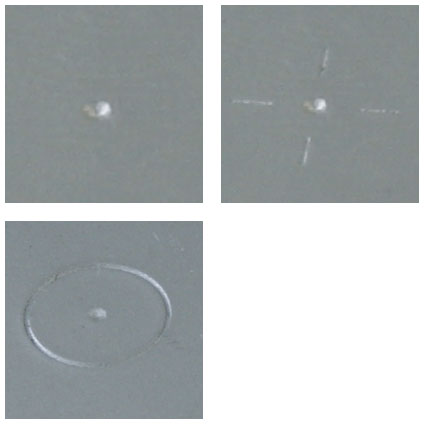

Forming process of making conical recess (center point).
Used for positioning, mark, and so on.
NOTE
- 1）Standard tool is not necessary to adjust the punch height when the material thickness is changed.
- 2）Standard of angle is 90°.
Please indicate when request the another angle. - 3）Depth of center point is adjustable.
- 4）We can make 1/2(Ast.) tool for forming up, so please contact us.
