8) BURRING

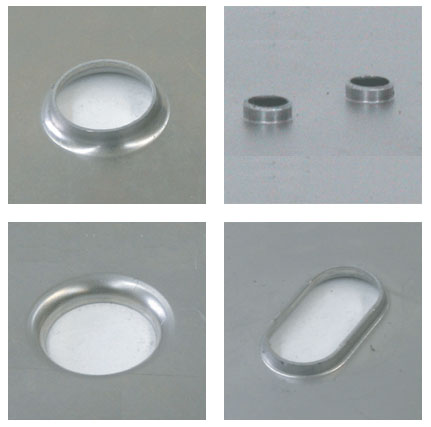

OUTLINE OF FORMING
Forming process for making tubes.
Used to guide or protect the code and pipe.
NOTE
- 1)Please indicate the dimension(A)or (B), when you order
- 2)

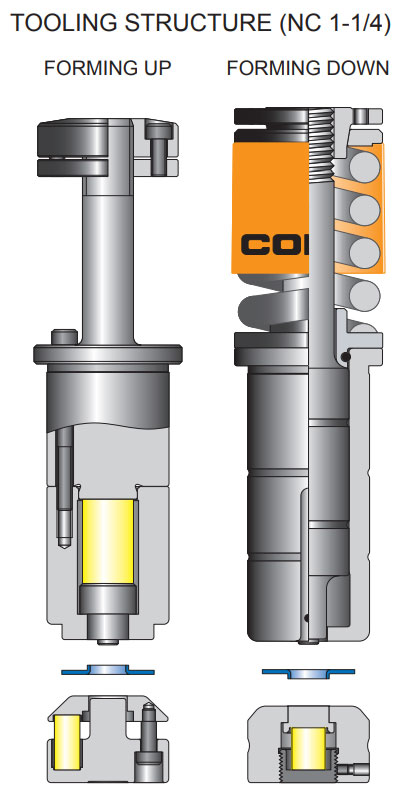

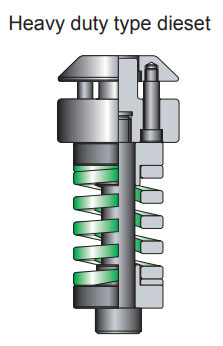

We recommend coated tools and heavy duty type dieset (in the case of upward) in order to reduce the trouble such as material which are difficult forming like stainless steel.
- 3)
The diameter of pre-hole is as the following formula.
Estimate diameter = A + 1.8 x Material thickness - 2 x H
