10) EMBOSS
OUTLINE OF FORMING

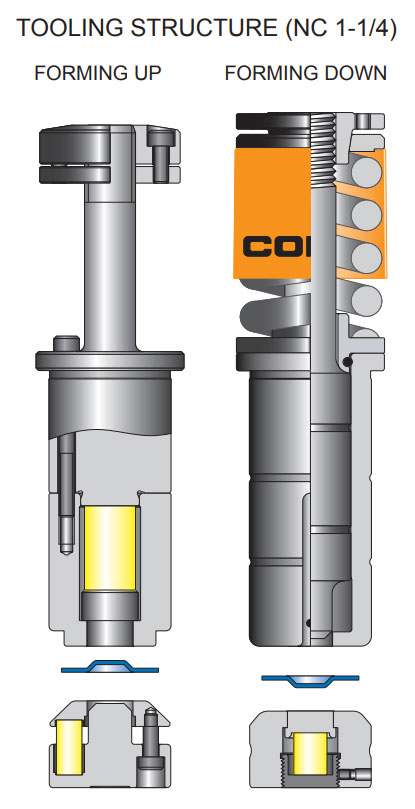

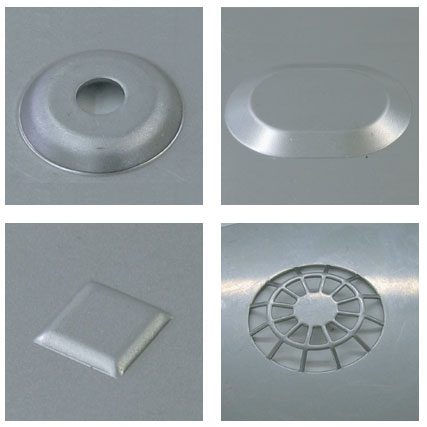

Forming process to produce raised or sunken shape.
Used for sinking a head of bolts or nuts.
Used for the seat of the product.
NOTE

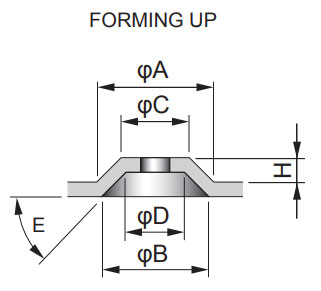

- 1)Please indicate the dimension "A or B" and "C or D" when you order.
You can also inform the dimension "A,B,C or D" and angle(E). - 2)Please inform if need a flat area on C or D.

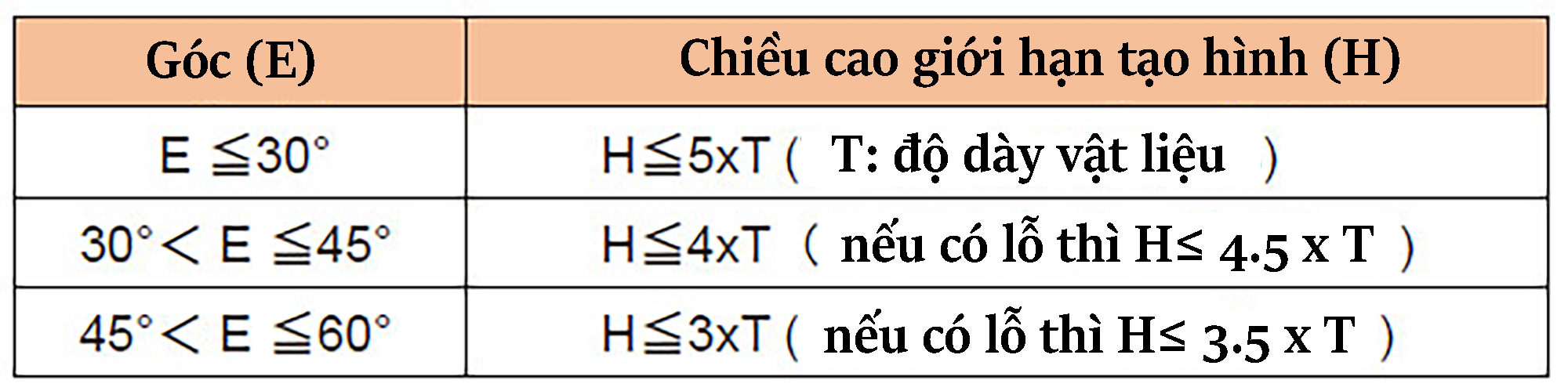

- 3)The forming limit height(H) is as follows.
- ※The limit of forming height is depend on the material and thickness and shape.
For more information, please contact us. - 4)Dimension(S) is required more than material thickness.
- 5)Can also be produced tools to make forming and piercing at the same time.
