9) CURLING
OUTLINE OF FORMING

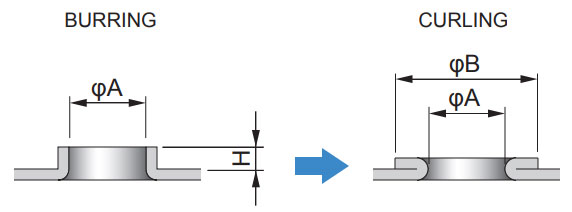

Forming process to bend the material after forming of burring.
Used to guide or protect the code and pipe.
The order of processing is Pre-hole ⇒ Burring ⇒ Curling.

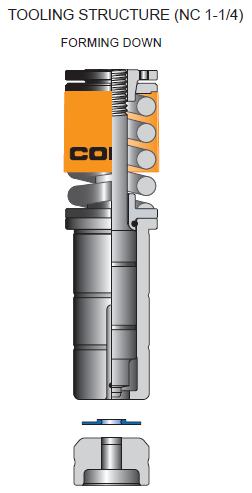

NOTE
- 1)Please indicate the dimension(A) and (B), when you order.
- 2)Usually we recommend forming down.
If require the forming up tool, Please contact to us. - 3)The height(H) of burring are as follows,
・ H = (B-A)÷2
・ H ≧ 2 x material thickness
