21) MARKING (STAMPING)
OUTLINE OF FORMING
Forming process of stamping the character or logo etc.
NOTE
- 1）Please indicate the size of character when you order.
- 2）Standard marking angle(A) is 90°.（We can make marking angle 60°, when the character size is small.）
- 3）
The minimum character size that can be formed is as follows.(Height of character)
Number Chinese characters 1mm 3mm - 4）

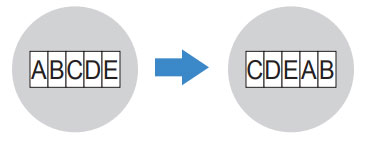

We can also make the insert chip type that can be replaced characters.
- 5）

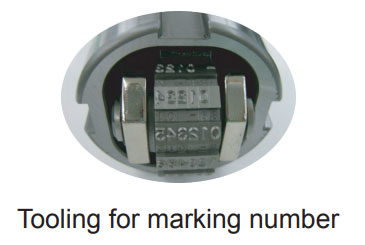

"Tooling for marking number" is useful for marking manufacturing number.

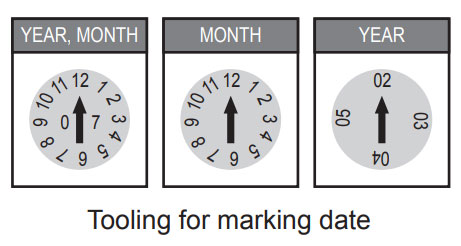

"Tooling for marking date" is useful for marking manufacturing date.
