4) COUNTERSINK
OUTLINE OF FORMING

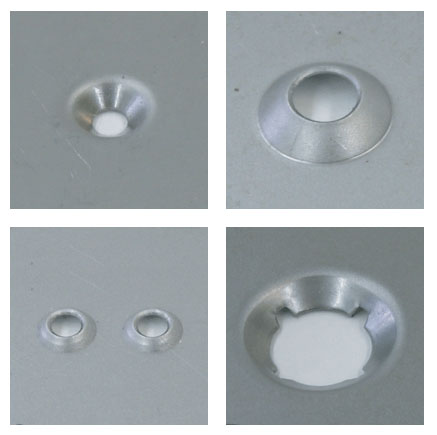

Forming process of embossing work, such as dish-shaped.
Used for sink a countersunk screw head , or used for nonslip.
NOTE
- 1）Please indicate the dimension of (A or B), dimension C and angle D, when you order.
- 2）Pierce pre-hole before forming.
