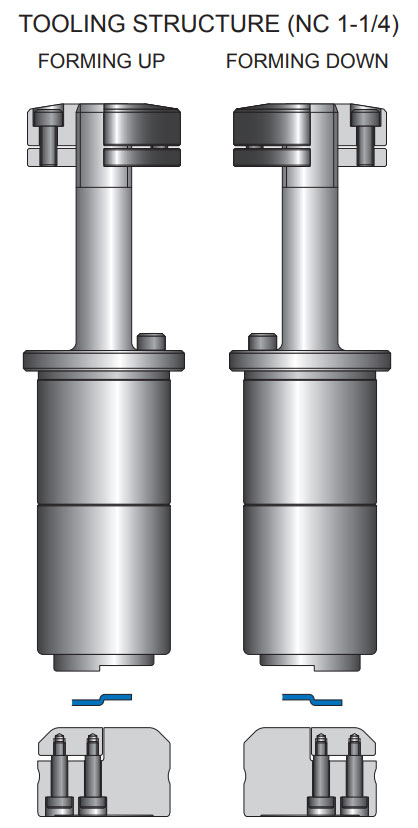

20) BENDING (OFFSET TOOL)
OUTLINE OF FORMING

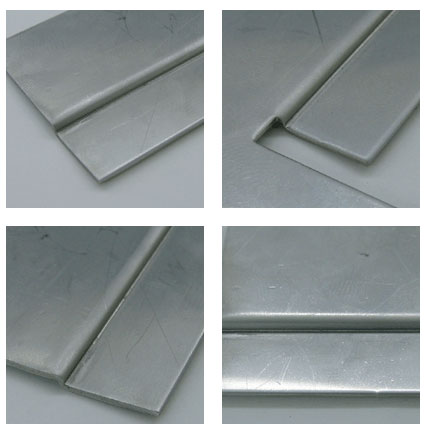

Forming process of bending that can hit continuously along the sheet.
Used for the overlaying the sheet.
NOTE

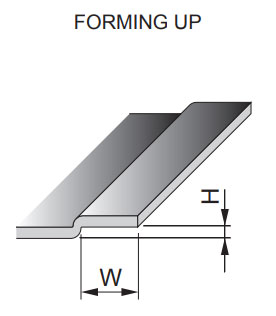

- 1）Please indicate the each dimension when you order.
- 2）We can make the tool that can bend along the curve shape.
And also we can make the tool that can bend at the one hit.
PDF Download
