Chày cối tạo hình
HINGE
HINGE TOOL
FORMING SHAPE
.gif)
1ST PROCESS
.gif)
2ND PROCESS
.gif)
3RD PROCESS
USAGE
Hinge processing.
Forming process to make hinge knuckle.

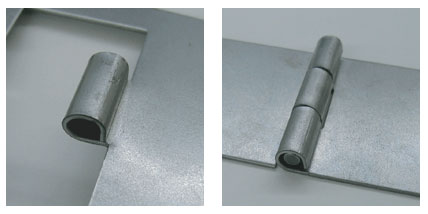

Hinge is made of two pieces.
Each piece include one or more interlocking knuckles to create a hinge.
Used for a jointed device on which a door, gate, shutter,or other attached part turns, swings, or moves.
SHAPES OVERVIEW
Hinge is processed by punch press tool.
It is formed by multiple processing such as bending for 90°and bending into a hinge shape.
NOTE
- 1）Three processes are required to produce hinge.

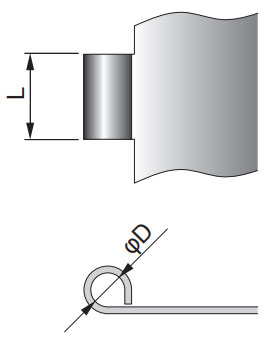

- 2）φD≦φ5
L≦ 15 mm
If you require another dimension, please contact us.
