Card guide(Guide rail)
USAGE

Used for a U-groove to insert a printed circuit board.
For a sliding part of OA rack.

EXAMPLES

Punched holes of right and left side are special shapes.
They are punched before forming.

CARD GUIDE
FORMING UP
TOOLING STRUCTURE(NC 1/2)
Click to zoomClick to zoom
TOOLING STRUCTURE(NC 1/2)
TOOLING STRUCTURE(NC 1/2)
SHAPES OVERVIEW

Guide rail shape is formed by raising parts from right and left side.

NOTE
  • 1）Please indicate the each dimension when you order.
  • 2）Pre-hole will be a rectangle or special shape.
    a) Rectangle / b) Special shape

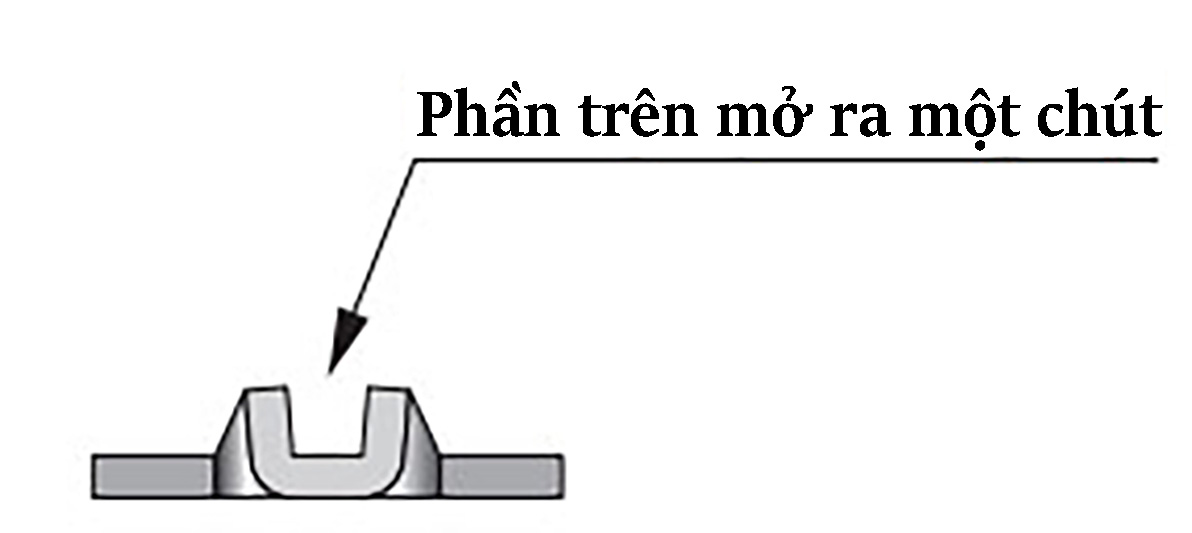

  • 3）U-groove will slightly open.
    a) Rectangle / b) Special shape
PDF DOWNLOAD

CARD GUIDE(GUIDE RAIL)(301KB)
