16) LANCE FOR AIR FLOW
OUTLINE OF FORMING

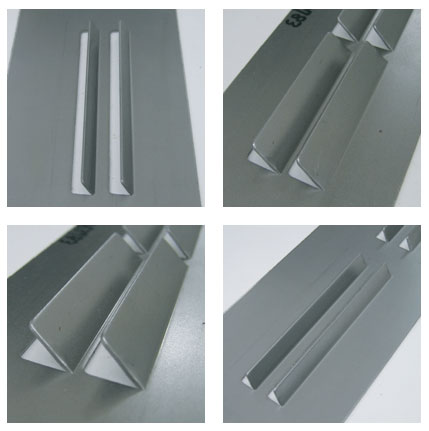

Forming process of lance to create an opening.
Used to provide air flow or ventilation.
NOTE

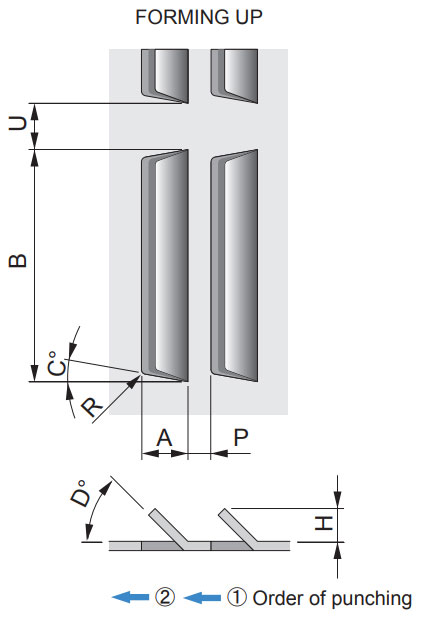

- 1）Please indicate the rising angle(D) or height(H).
- 2）
Conditions of punching
Material thickness ≦ 2.3 mm
Material thickness + Height(H) ＜ 10
Angle(C) ≧ (2°)～5°Forming pitch P ≧ 0
U ≧ 5 (Material thickness ≦ 1.6 mm)
U ≧ 8 (Material thickness ＞ 1.6 mm)- ※If the punching conditions are not met, please contact us.

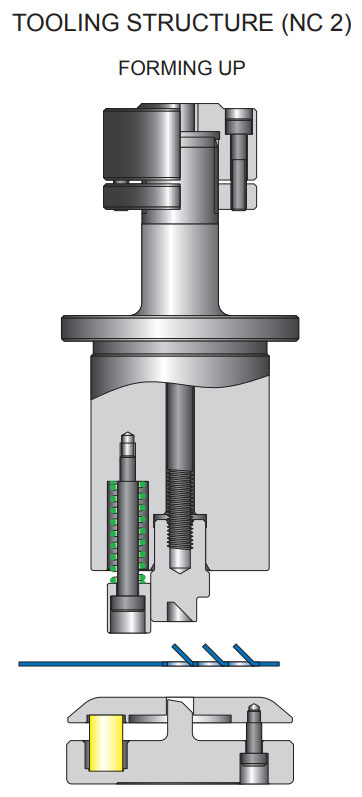

- 3）Except for some models, the upper tool is a replaceable blade type.
PDF Download
