MARKING（EMBOSS）
MARKING（EMBOSS）
FORMING SHAPE
FORMING UP
FORMING DOWN
USAGE
Used for stamping identification mark and lot number.
engraving a pattern on a workpiece.
Forming process of embossing the character or logo etc.
EXAMPLES
Earth mark used in a home appliance.
Piping indication of a water heater.
Example of dedicated logo.
Click to zoomSHAPES OVERVIEW

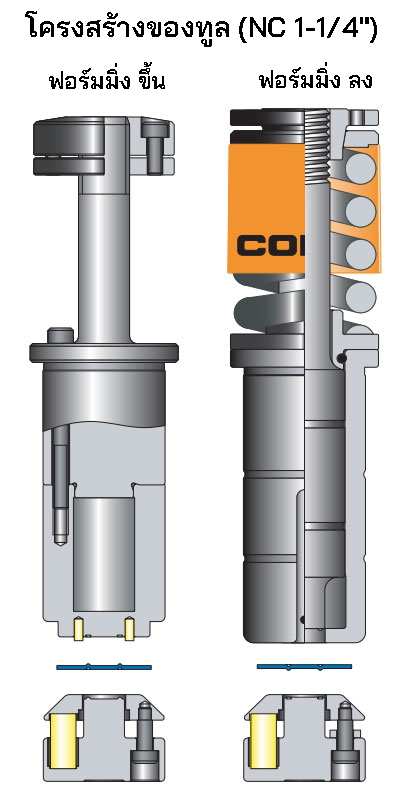

The concave and the convex mark is engraved on the punch and the die,
designated characters and patterns are punched on a workpiece.
NOTE
- 1）Please indicate the size of character when you order.
- 2）Minimum line width is 1 mm.
-
3）The minimum character size that can be formed is as follows.
(Height of character)Number Chinese characters 3mm 10mm - 4）Please indicate that either read from the convex side or the concave side.
