TOOLING STRUCTURE (NC 1-1/4)
Click to zoomClick to zoom
TOOLING STRUCTURE (NC 1-1/4)
TOOLING STRUCTURE (NC 1-1/4)
USAGE

Forming process of making the one pitch thread form.

Used to screw in place that does not require a heavy strength.

NOTE
  • 1）Please indicate the size of screw when you order.

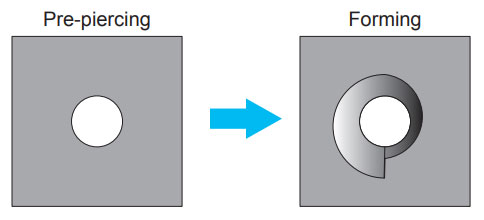

  • 2） Forming after pre-pierced.
    Pre-piercing → Forming
  • 3）Although the material thickness can be different, you can use in the same tool, if the same thread size.
    But it is necessary to adjust the height of the punch.
  • 4） Applicable material thickness are as follows.
    Screw size Applicable material thickness
    M3 0.6t～0.8t
    M4 0.6t～1.2t
    M5 0.6t～2.0t
    M6 0.6t～2.0t
    M8 0.6t～2.3t
