Louver
USAGE

Used for ventilation, radiating heat and agricultural seed selecting function.

Forming process of lance to create an opening.
Used to provide air flow or ventilation.

EXAMPLES

In addition to a one-punching processing type, there is also continuous forming type which can change a opening width.

LOUVER FOR AIR FLOW
LOUVER FOR AIR FLOW

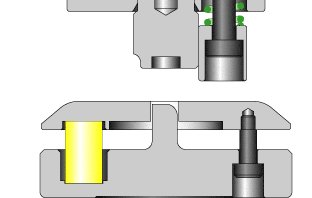

TOOLING STRUCTURE (NC 1-1/4)
Click to zoomClick to zoom
TOOLING STRUCTURE (NC 1-1/4)
TOOLING STRUCTURE (NC 2)
SHAPES OVERVIEW

The forming tool cuts and draws a workpiece to make an opening for ventilation.

NOTE
  • 1）Conditions of punching
    Material thickness ≦ 2.3 mm
    Width(A) ≧ Height(H) x 2
    Forming pitch P ≧ 5
    C ≧ 5 (Material thickness ≦ 1.6 mm
    C ≧ 8 (Material thickness ＞ 1.6 mm)
    Height(H) ≦ Material thickness x 4 (Mild steel)
    Height(H) ≦ Material thickness x 3.5 (Stainless steel, Aluminum)
    • ※If the punching conditions are not met, please contact us.
  • 2）Except for some models, the upper tool is a replaceable blade type.
PDF DOWNLOAD

LOUVER(576KB)
