LANCE
LANCE FOR AIR FLOW
LANCE
FORMING UP
USAGE
Used for ventilation and radiating heat.
Forming process of lance to create an opening.
Used to provide air flow or ventilation.
EXAMPLES
The larger its standing angle is, the more the burden is imposed on the tool, and then problems such as chipping are likely to occur.
Click to zoomSHAPES OVERVIEW

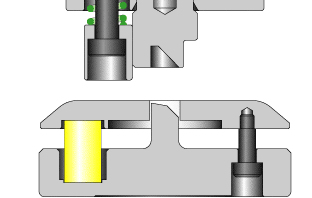

The forming tool cuts and draws a workpiece to make an opening for ventilation.
NOTE
- 1）Please indicate the rising angle(D) or height(H).
-
2）Conditions of punching
Material thickness ≦ 2.3 mm
Material thickness + Height(H) ＜ 10
Angle(C) ≧ (2°)～5°Forming pitch P ≧ 0
U ≧ 5 (Material thickness ≦ 1.6 mm)
U ≧ 8 (Material thickness ＞ 1.6 mm) - ※If the punching conditions are not met, please contact us.
- 3）Except for some models, the upper tool is a replaceable blade type.
