Beading
USAGE

Used for strengthening and nonslip.
Paper discharge part of copying machine.

EXAMPLES

As the start and end points are formed ambiguously,
we recommend the tool for forming both ends.

BEADING
FORMING UP
TOOLING STRUCTURE (NC 1-1/4)
Click to zoomClick to zoom
TOOLING STRUCTURE (NC 1-1/4)
TOOLING STRUCTURE (NC 1-1/4)

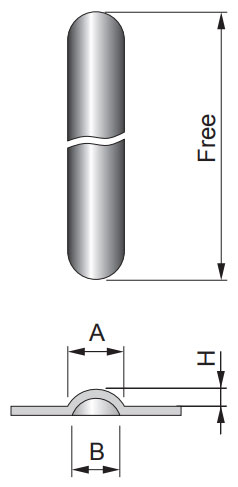

SHAPES OVERVIEW

The reinforcing part shaped in a bead is formed by nibbling processing.

NOTE
FORMING UP
  • 1）The height(H) is preferably less than 40% of width(A).
  • 2）Please indicate the dimension of A or B, when you order.
  • 3）There are the following types of tooling.
    • ①For the linear. (Punching the straight portion)
    • ②For the curve portion. (Punching the curved section)
    • ③For the end face. (Punching of the end face of beeding)
    Please indicate the tooling type when you order.

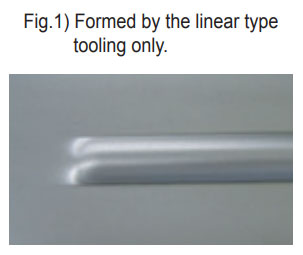

Fig.1) Formed by the linear type tooling only.

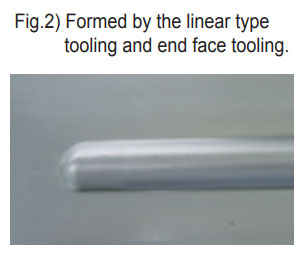

Fig.2) Formed by the linear type tooling and end face tooling.
