HERRAMIENTAS FORMADO

28. Drawing

HERRAMIENTAS FORMADO

28. Drawing

Uso

Used for bottom parts of products.

Resumen de formas

A required shape is formed with 1 punching or multiple punchings.

Ejemplos de

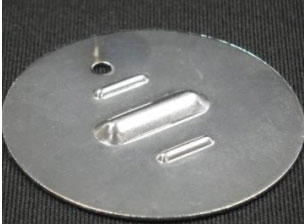

Obround shape If the rising part is high, the work piece is easy to be deformed.

Triple drawing.

Drawing of square shape.

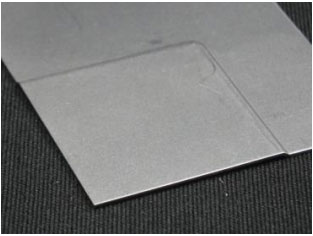

The example of processing to the end face of the workpiece.
