PUNCHING
RFQ from the FAX / Quotation request
"Quote sheet mold order" is a summary of the shape forming of high demand among the special mold.
Quotation requests, so you can easily mold in order to fill out only within the framework of marks or numbers in form, click the menu button, PDF file ､ view and print, our requirements Connick Mold Center Presents FAX thank you to fill out.
The style is not applicable for molded shapes, F99 menu of "free form" shape to the mold center and attach the drawing Connick Please FAX.
FAX your quotation request format
![AMADA Type [THICK TURRET] Punching Tool](../images/punching/fax_p01.jpg)

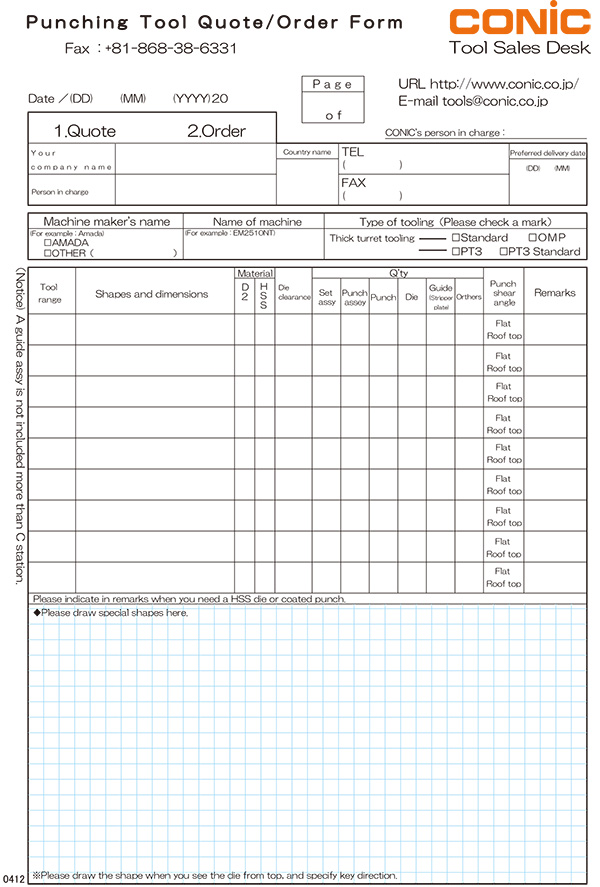

AMADA Type [THICK TURRET] Punching Tool

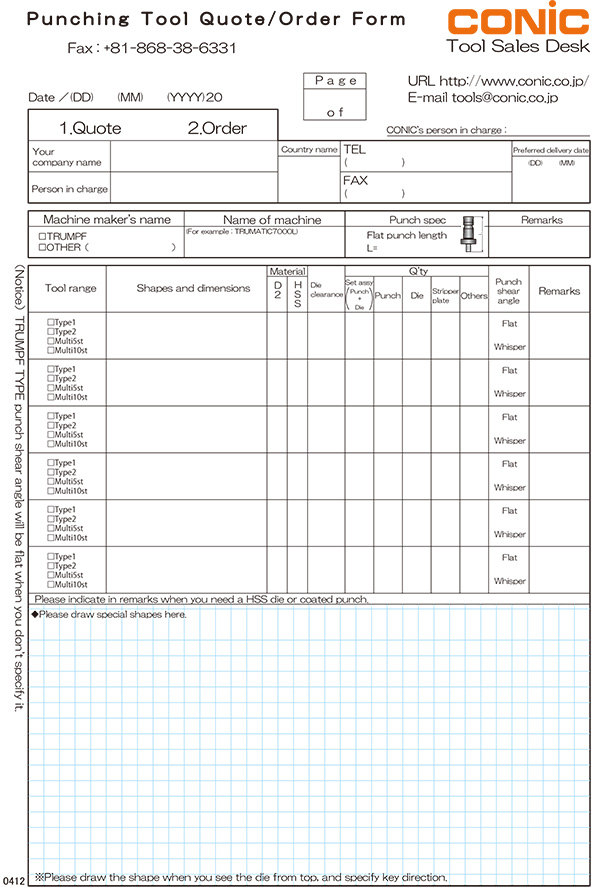

TRUMPF Type Punching Tool
![AMADA Type [THIN TURRET] Punching Tool](../images/punching/fax_p02.jpg)

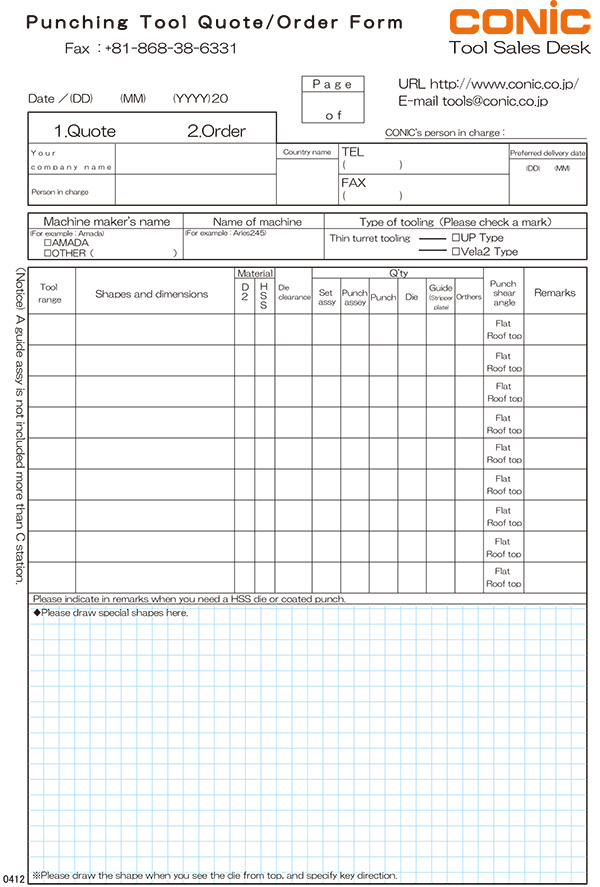

AMADA Type [THIN TURRET] Punching Tool

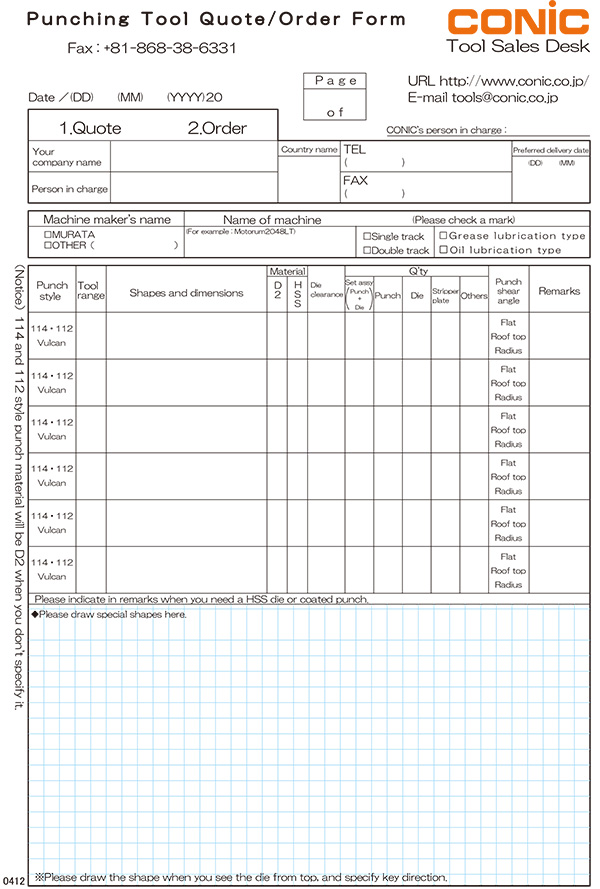

MURATA Type Punching Tool
![AMADA Type [SET PRESS] Punching Tool](../images/punching/fax_p03.jpg)

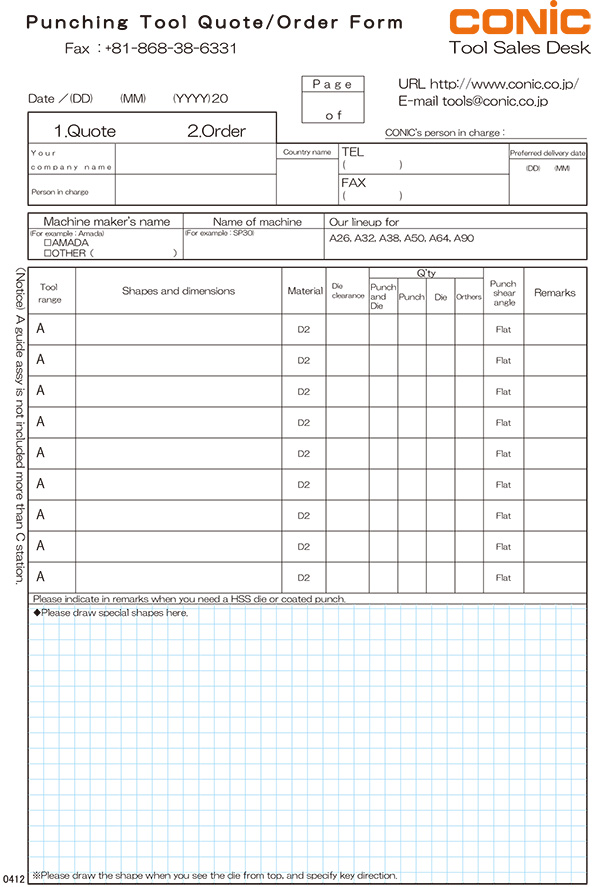

AMADA Type [SET PRESS] Punching Tool

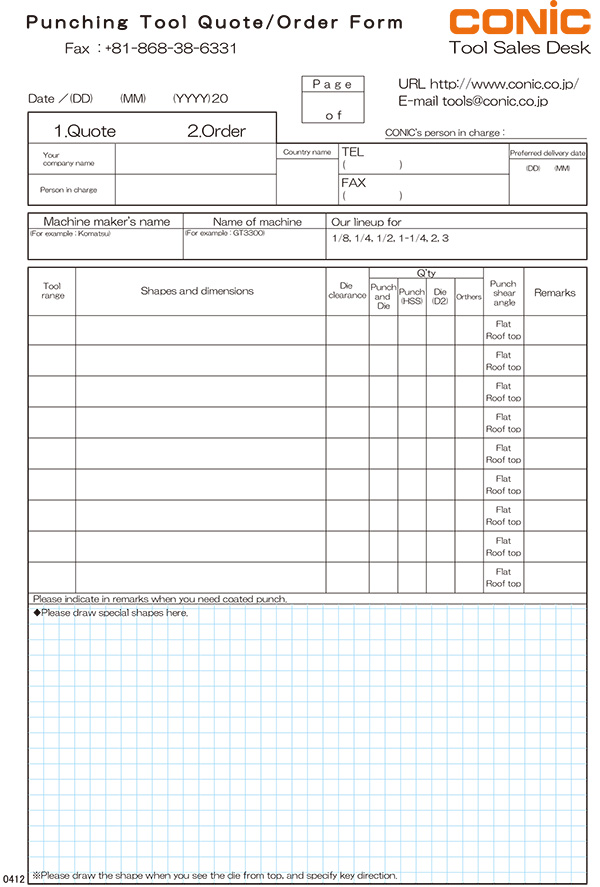

KOMATSU Type Punching Tool
F01 Up Burring Tapping
F03 Up Round Halfshear
F05 Up Round Emboss
F07 Up Round Countersink For Counter Screw
F09 Up Round Countersink Dedicated
F11 Up Round Burring For Counter Screw
F13 Up Round Burring
F15 Up Round Knockout
F17 UP EMBOSS

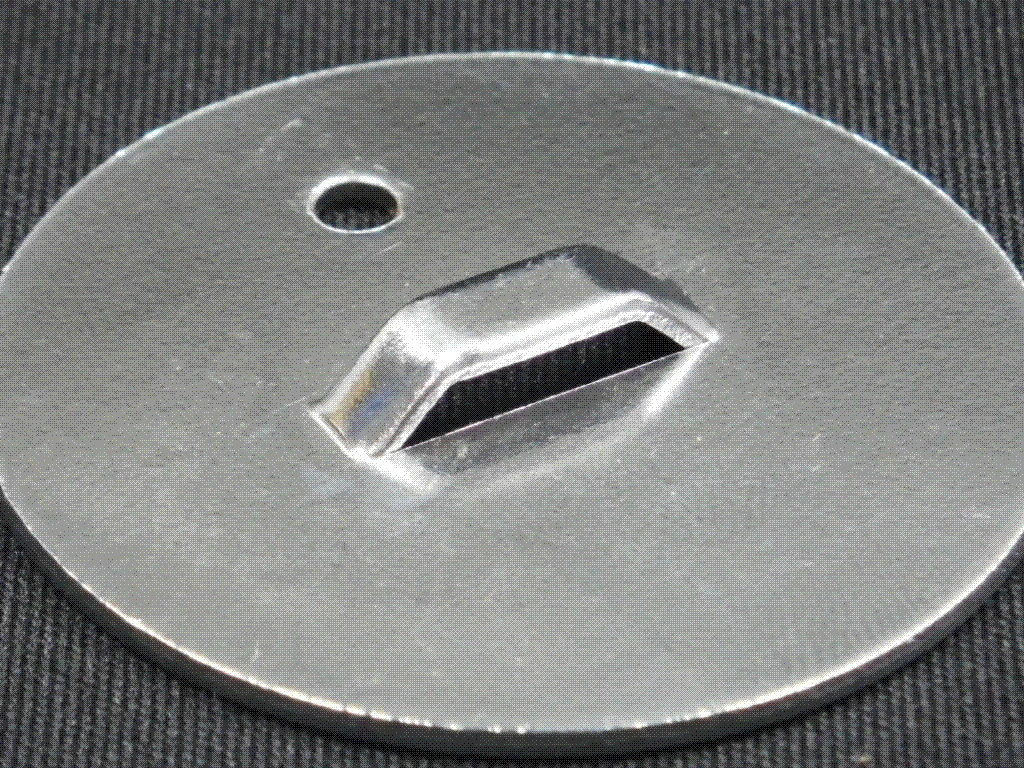

F19 Up Bridge

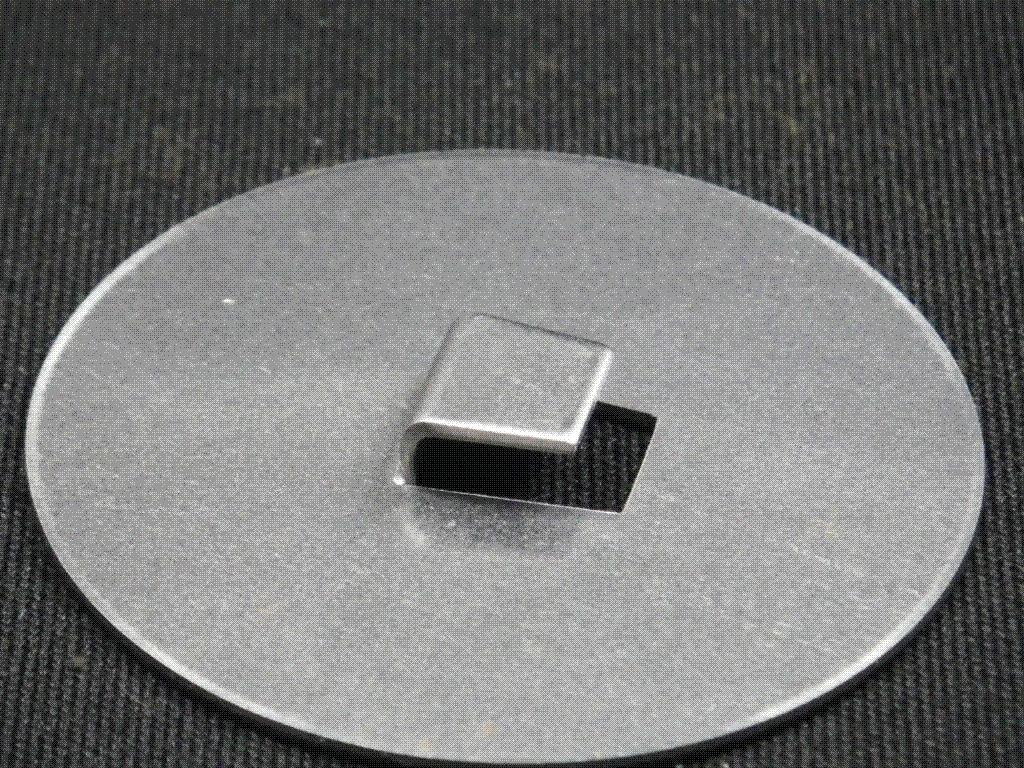

F20 UP Z-Bending

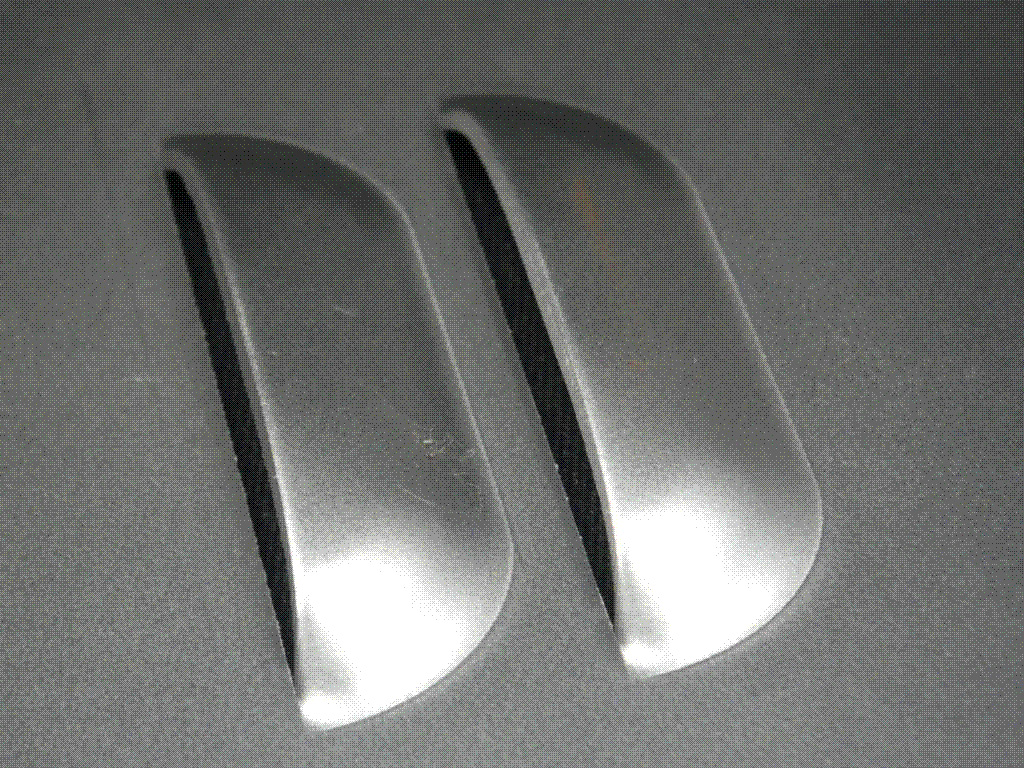

F21 Up Louver

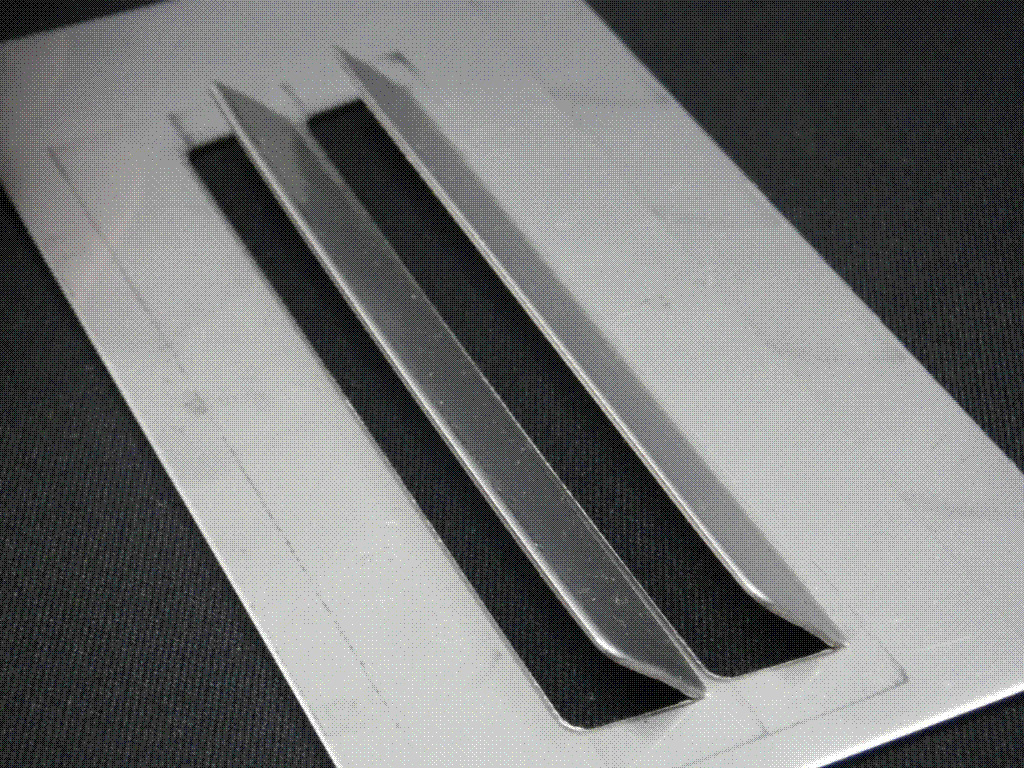

F22 UP LANCE
F23 UP COUNTERSINK
F25 UP MARKING
F27 EMBOSS MARKING

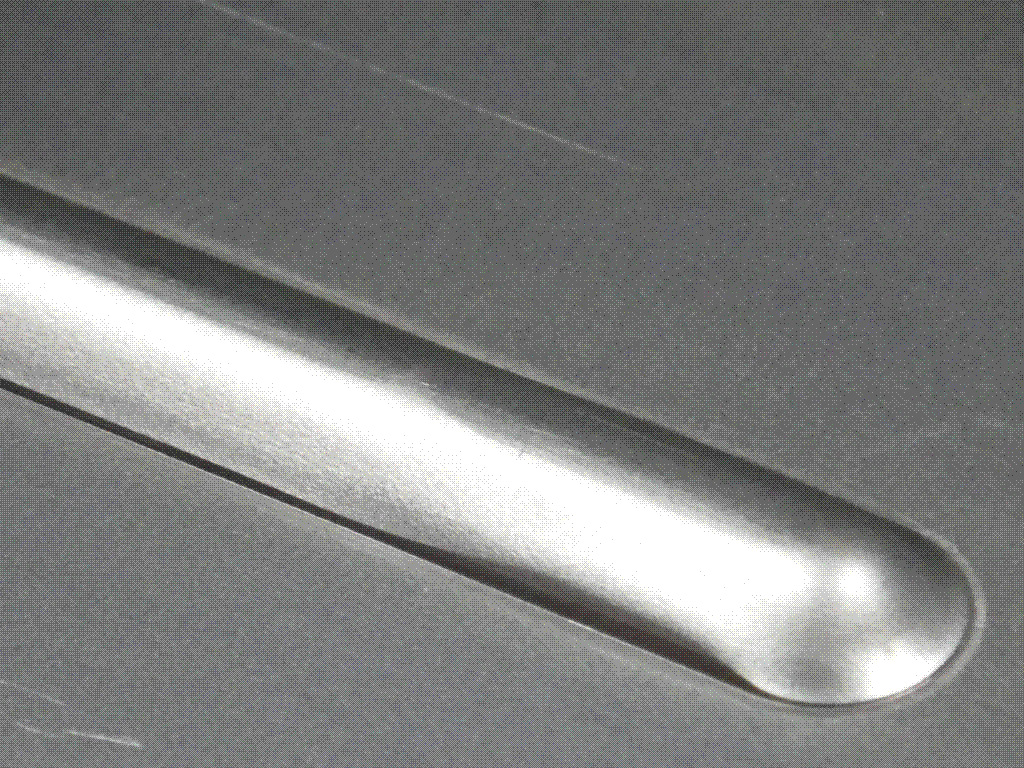

F29 UP BEADING

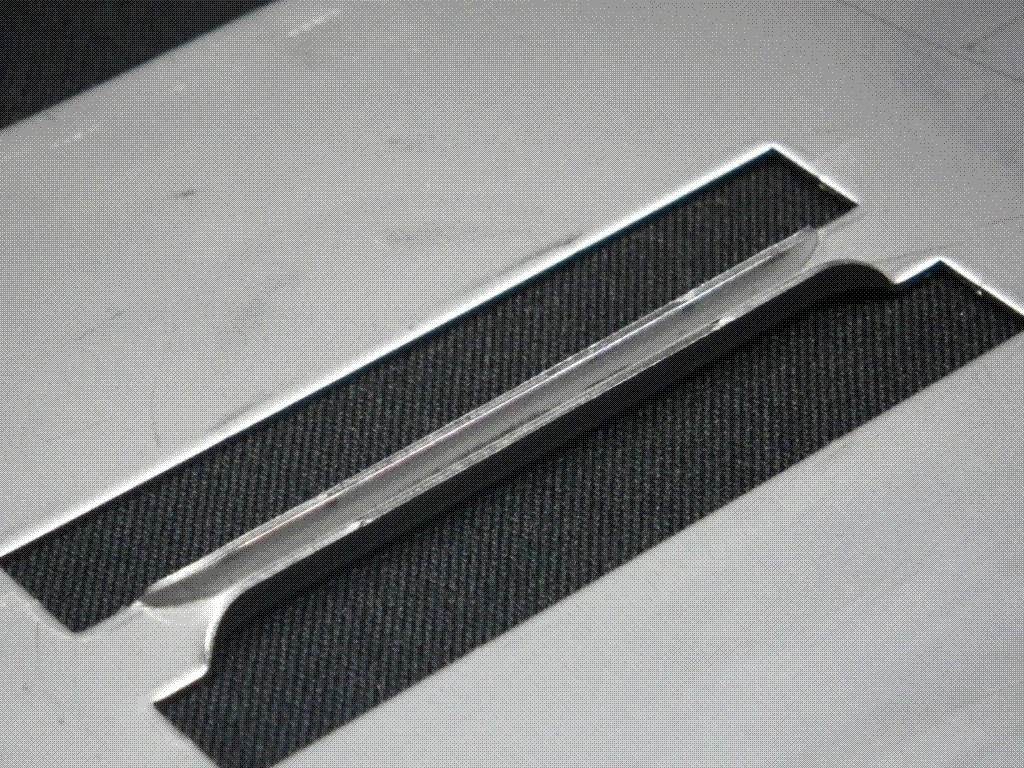

F30 UP CARD GUIDE(GUIDE RAIL)

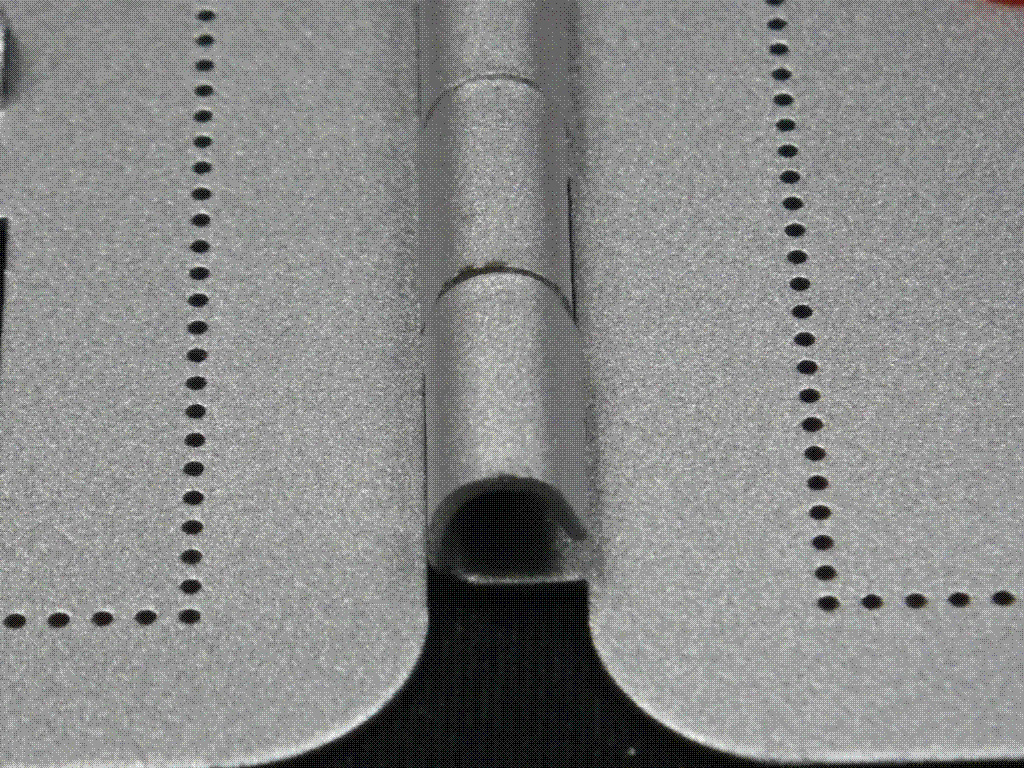

F31 UP HINGE

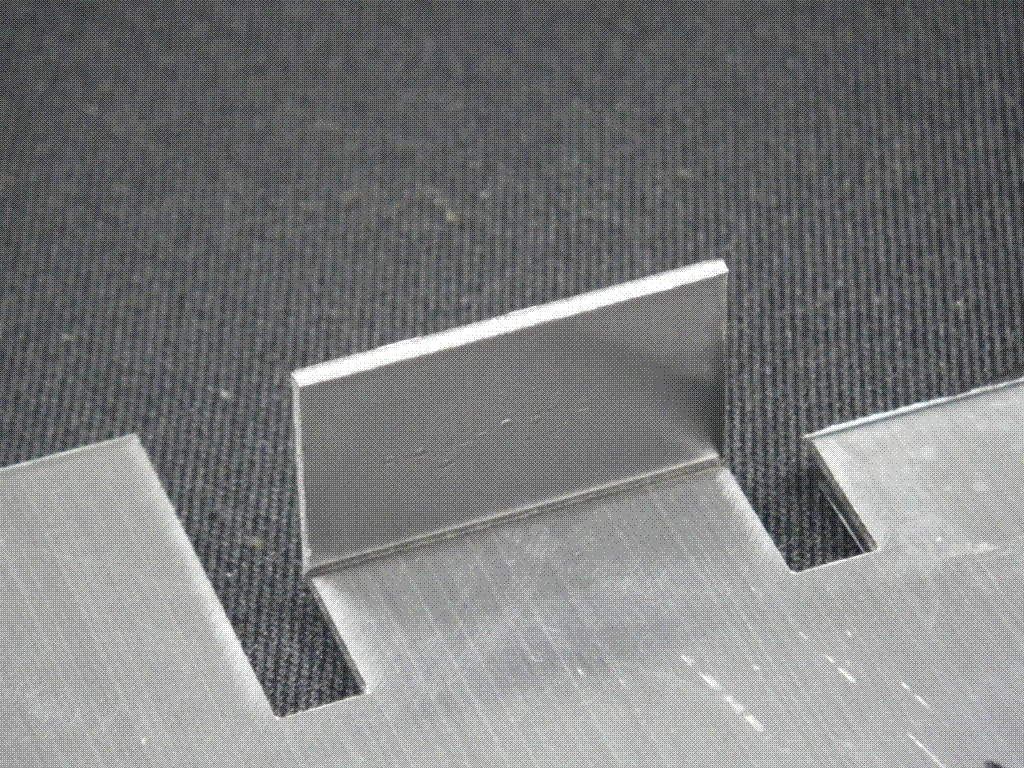

F32 UP L-Bending
F33 UP ONE PITCH BURRING
F36 UP BENDING (OFFSET TOOL)
F38 UP CENTER POINT

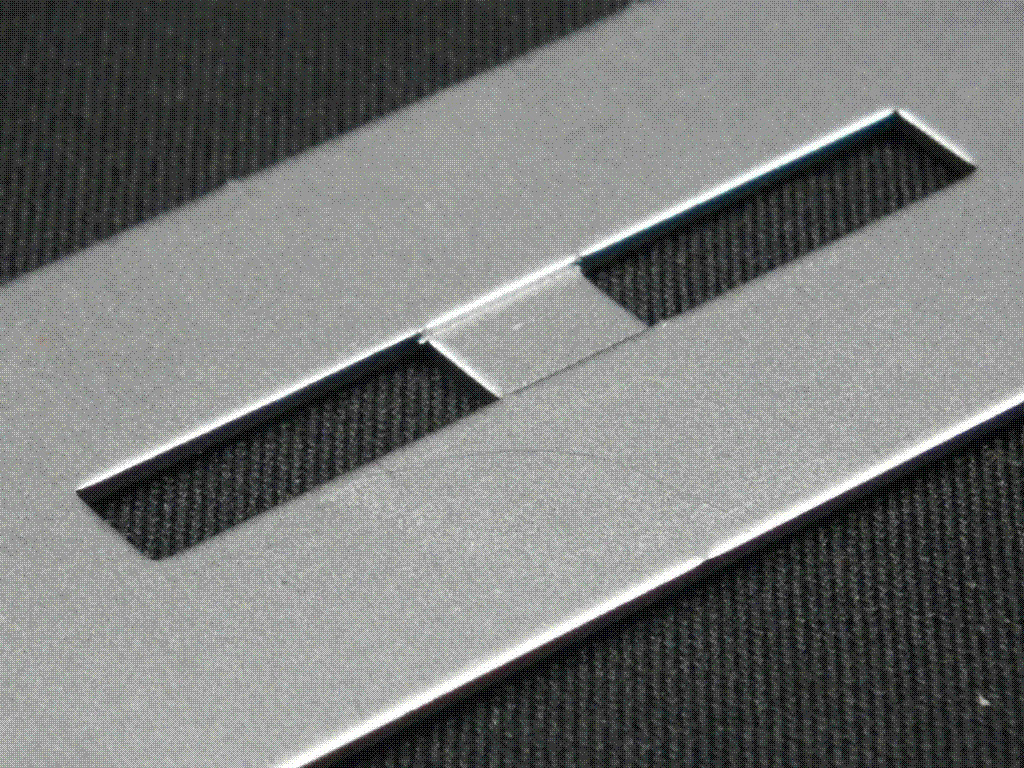

F99 FREE FORM
F02 Down Burring Tapping
F04 Down Round Halfshear
F06 Down Round Emboss
F08 Down Round Countersink For Counter Screw
F10 Down Round Countersink Dedicated
F12 Down Round Burring For Counter Screw

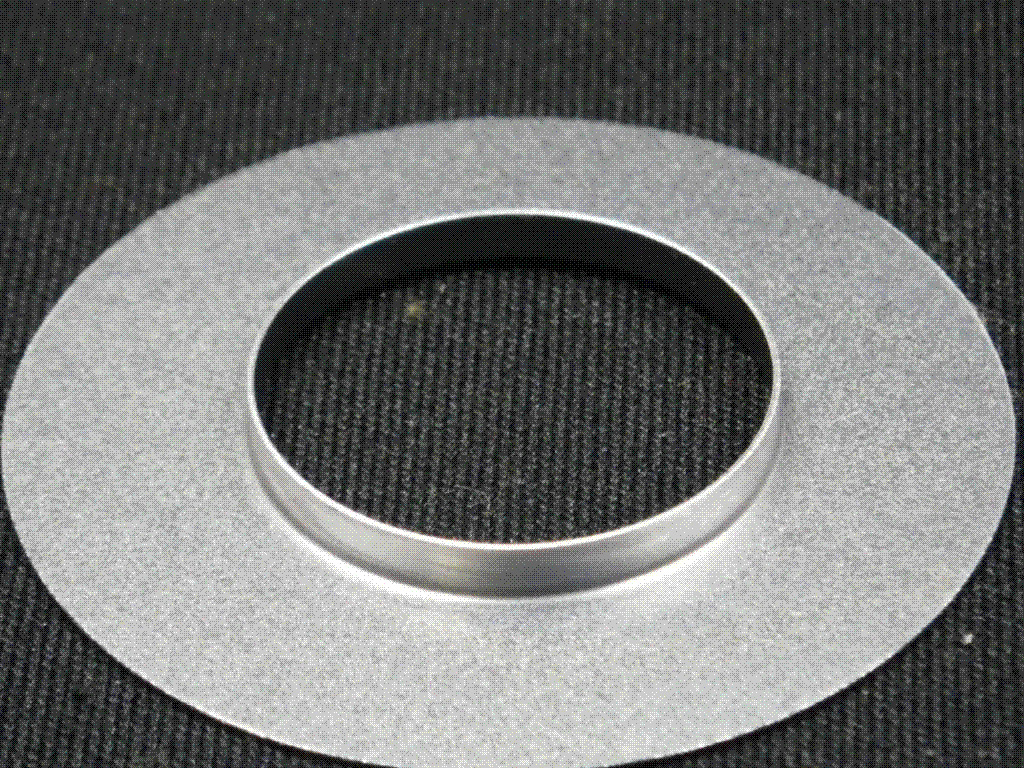

F14 Down Round Burring

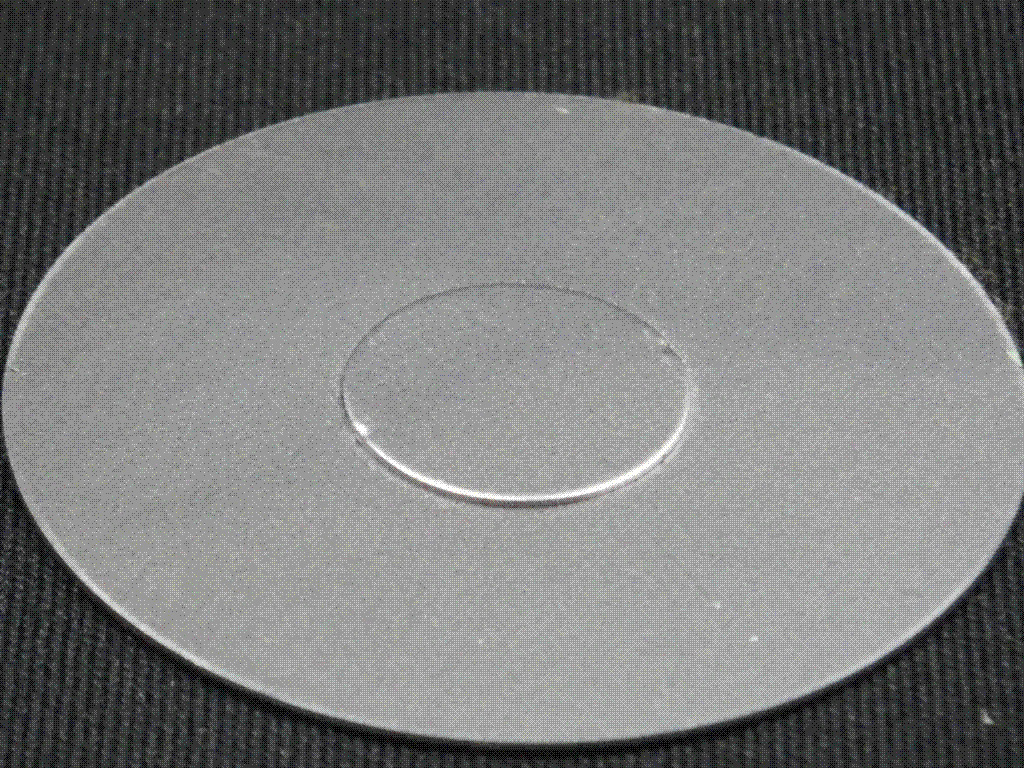

F16 Down Knockout

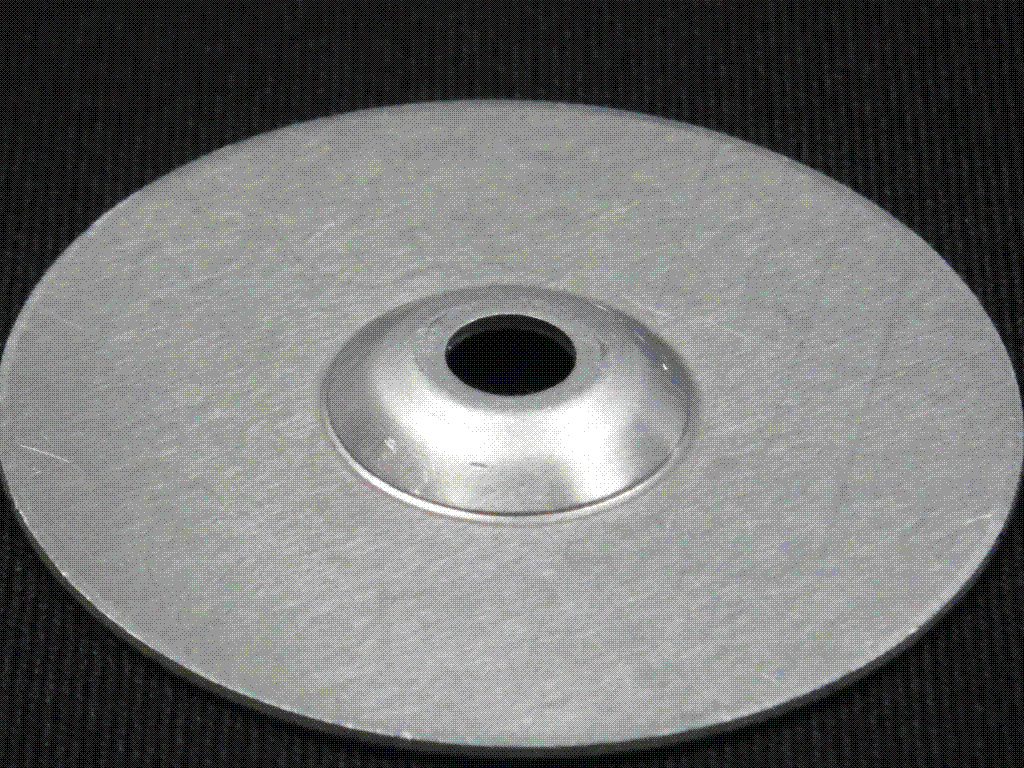

F18 Down Emboss
F24 DOWN COUNTERSINK

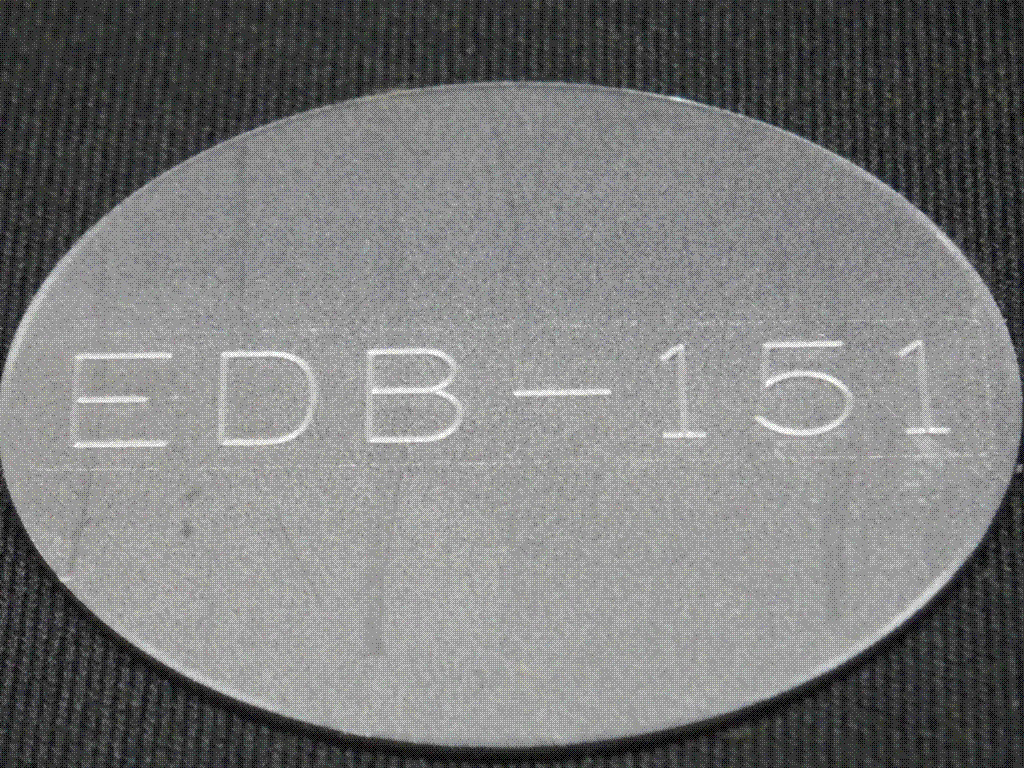

F26 DOWN MARKING

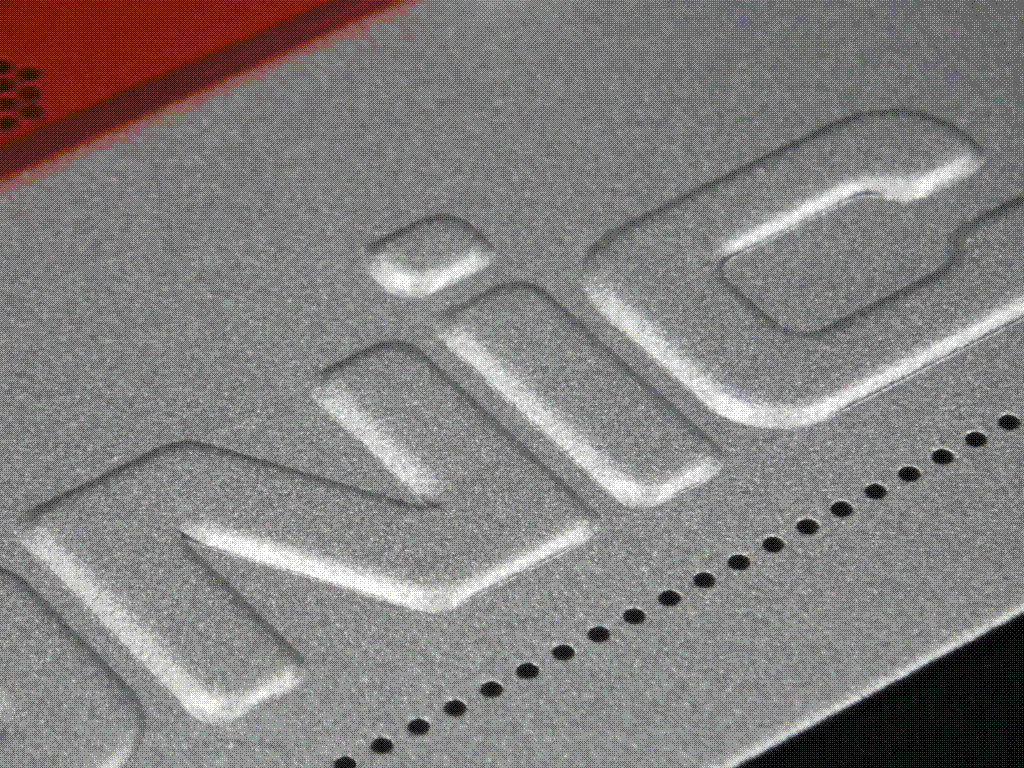

F28 DOWN EMBOSS MARKING
F34 DOWN ONE PITCH BURRING
F35 DOWN CURLING
F37 DOWN BENDING (OFFSET TOOL)
F39 DOWN CENTER POINT

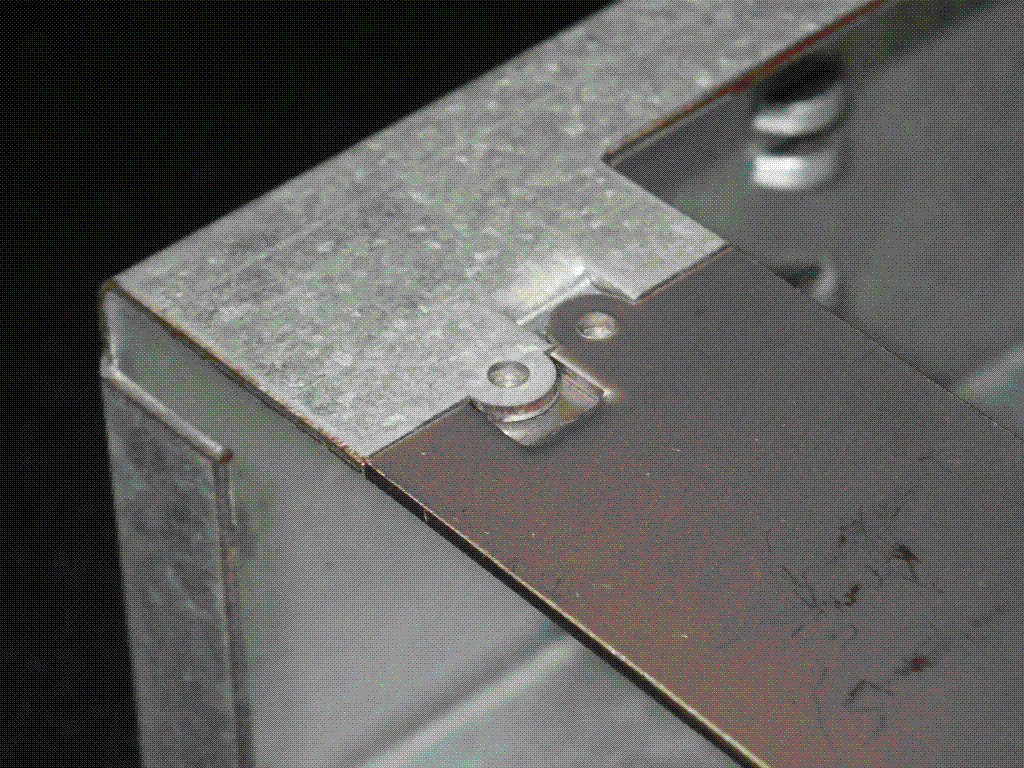

F40 DOWN EASY JOINT
