FORMING TOOLS

MINI LOUVER

FORMING TOOLS

MINI LOUVER

LOUVER

BURRING FOR THREAD FORM

FORMING SHAPE

FORMING UP

FORMING UP

USAGE

Used for a positioning stopper.

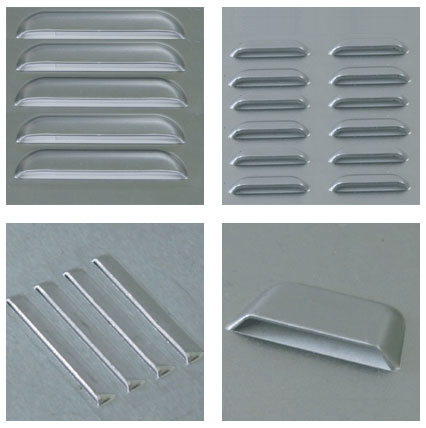

EXAMPLES

Hemispherical mini louver.

Four places are processed with auto-index and it is used for attaching a nameplate.

Multiple processing.

LOUVER FOR AIR FLOW
FORMING UP

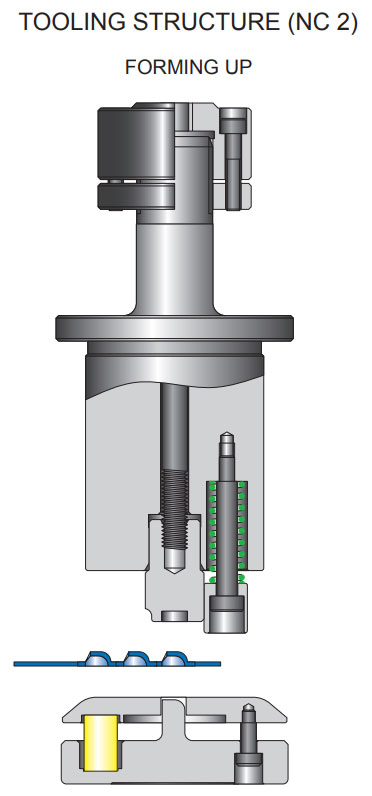

TOOLING STRUCTURE (NC 2)
Click to zoomClick to zoom
TOOLING STRUCTURE (NC 2)
TOOLING STRUCTURE (NC 2)
SHAPES OVERVIEW

This forming tool cuts and draws a workpiece.

NOTE
  • 1）Conditions of punching
    Material thickness ≦ 2.3 mm
    Width(A) ≧ Height(H) x 2
    Forming pitch P ≧ 5
    C ≧ 5 (Material thickness ≦ 1.6 mm
    C ≧ 8 (Material thickness ＞ 1.6 mm)
    Height(H) ≦ Material thickness x 4 (Mild steel)
    Height(H) ≦ Material thickness x 3.5 (Stainless steel, Aluminum)
    • ※If the punching conditions are not met, please contact us.
  • 2）Except for some models, the upper tool is a replaceable blade type.
PDF DOWNLOAD

MINI LOUVER(576KB)

ORDER SHEET

UP-FORMING
